Raytech: Raytech AG Power transformer digital test equipment system

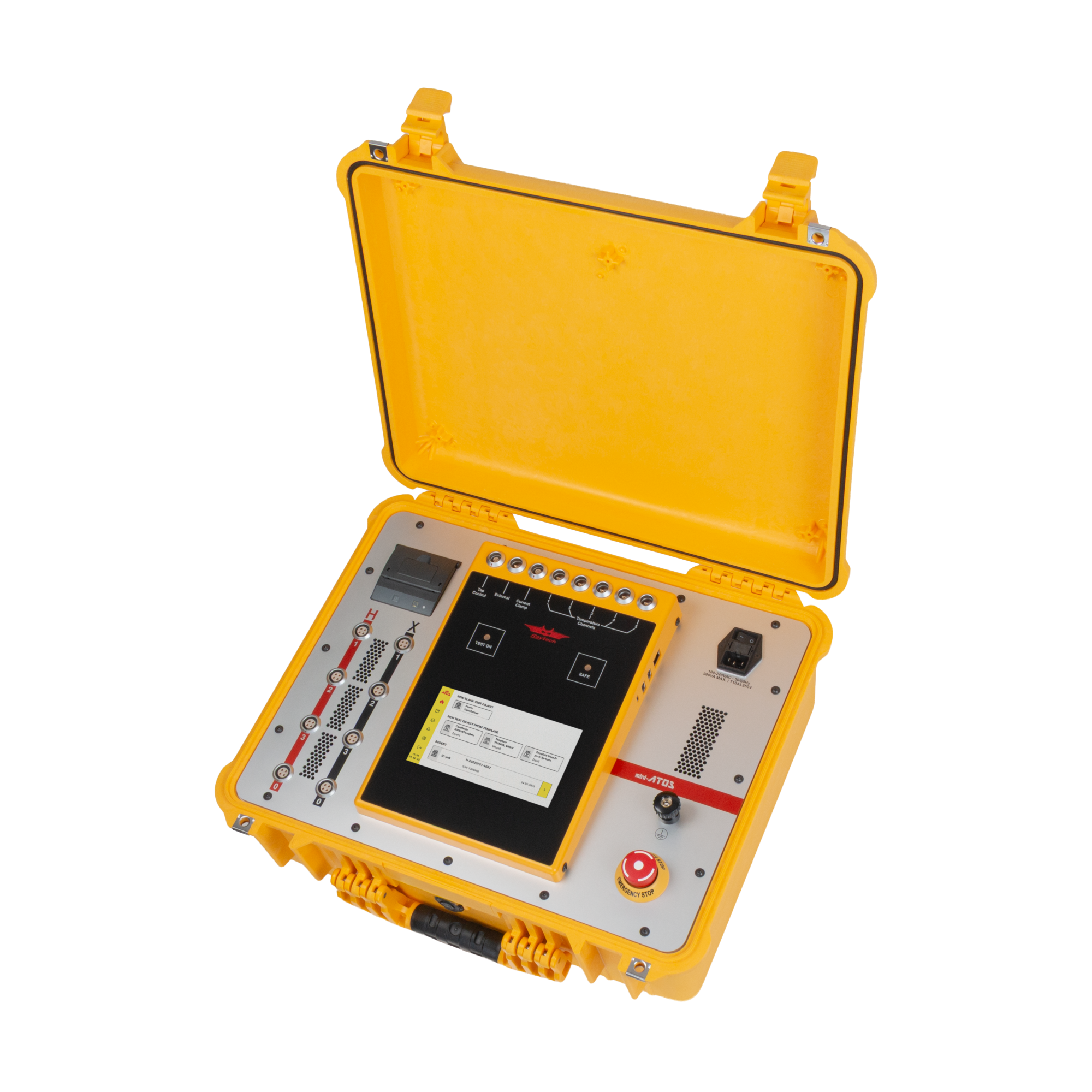

mini-ATOS

mini Automatic Transformer Observation System

Professional Multifunctional Diagnostic System
Built-in Automatic Multiplexer
AC and DC Measurements

Product Flyer

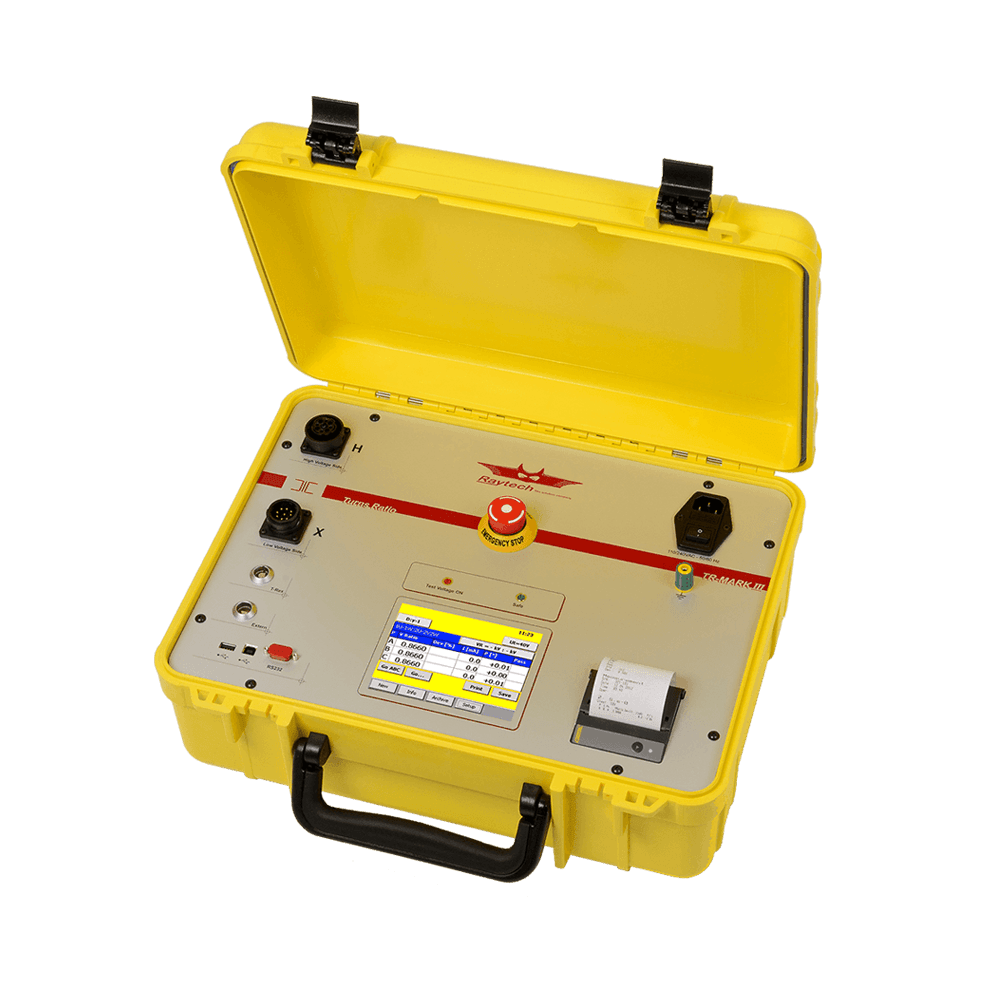

TR-MARK III 250V

Turns Ratio Meter 3 Phase

Fully Automatic
Test Voltage up to 250V
Automatic Vector Group Detection

Product Flyer

WR50-12

Winding Resistance Meter 50Amps, 2 Channels

High power DC supply (50A/50V)
Demagnetisation and discharge
Color touch screen

Product Flyer

CAPO 12

Capacitance & tan δ Power Factor Meter 12kV

Test voltage 12kV
Built-in standard capacitor
Test frequency 10Hz - 400Hz

Product Flyer

CT-T1

Current Transformer Tester

CT excitation current
Turns ratio
Winding polarity test

Product Flyer

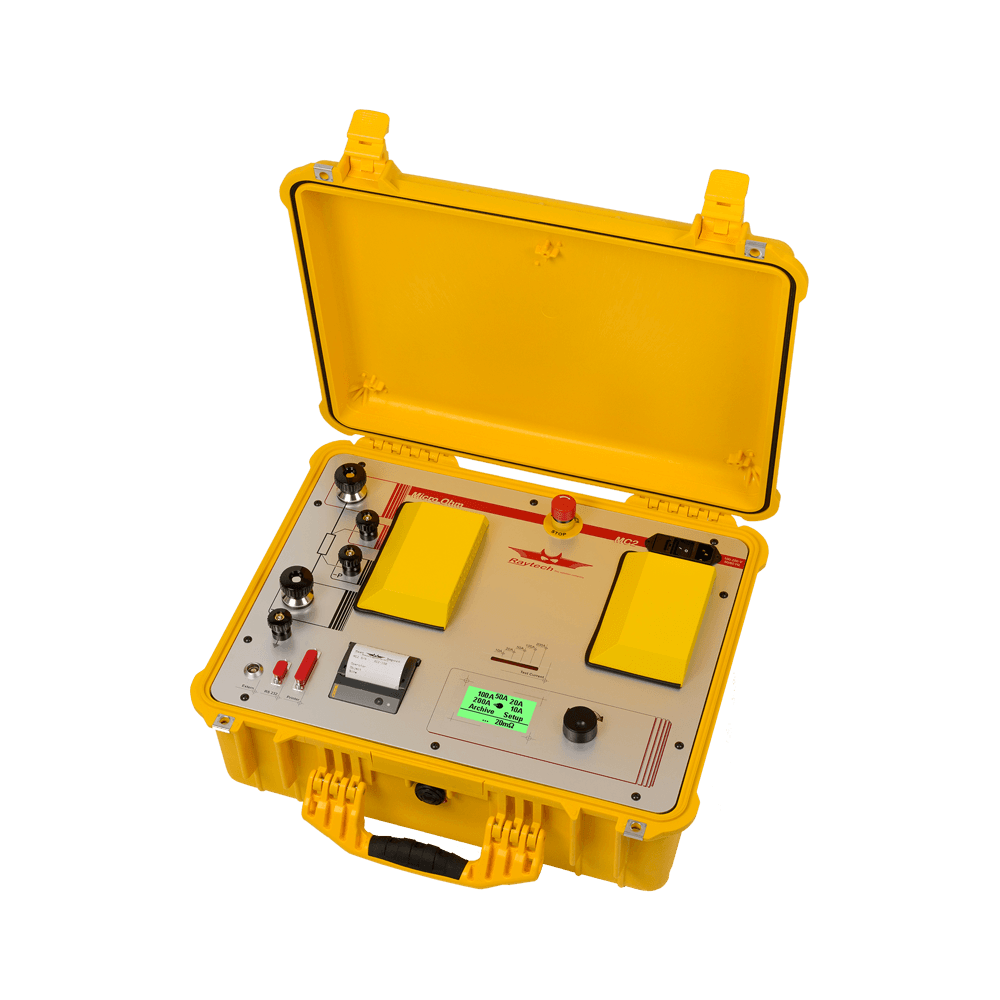

Micro Centurion II

Micro Ohm Meter 200A

Fully automatic
5 current ranges for best accuracy
Pure filtered DC output

Product Flyer

WR14

Winding Resistance Meter 15Amps, 2 Channels

Battery and mains operated
Demagnetisation and discharge
Color touch screen

Product Flyer

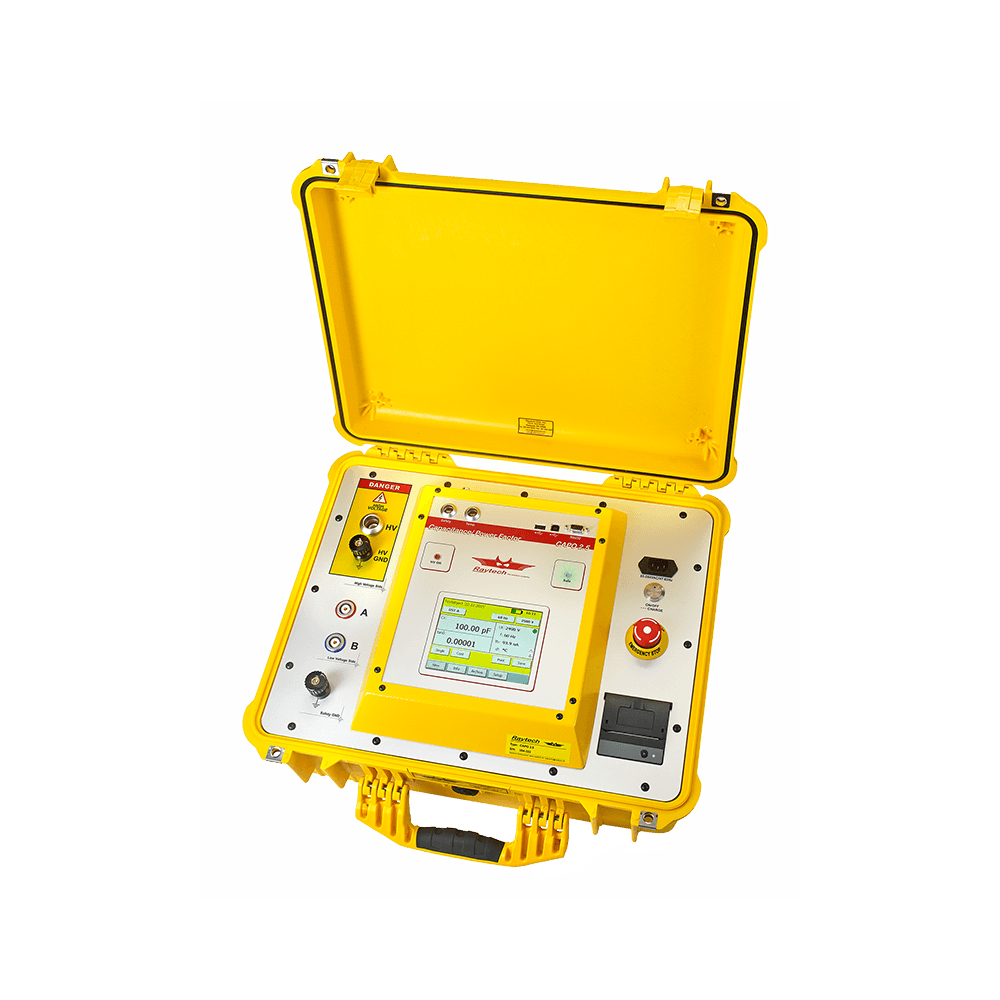

CAPO 2.5

Capacitance & tan δ Power Factor Meter 2.5kV

Battery and mains operated
Built-in standard capacitor
Test frequency 10Hz - 400Hz

Product Flyer

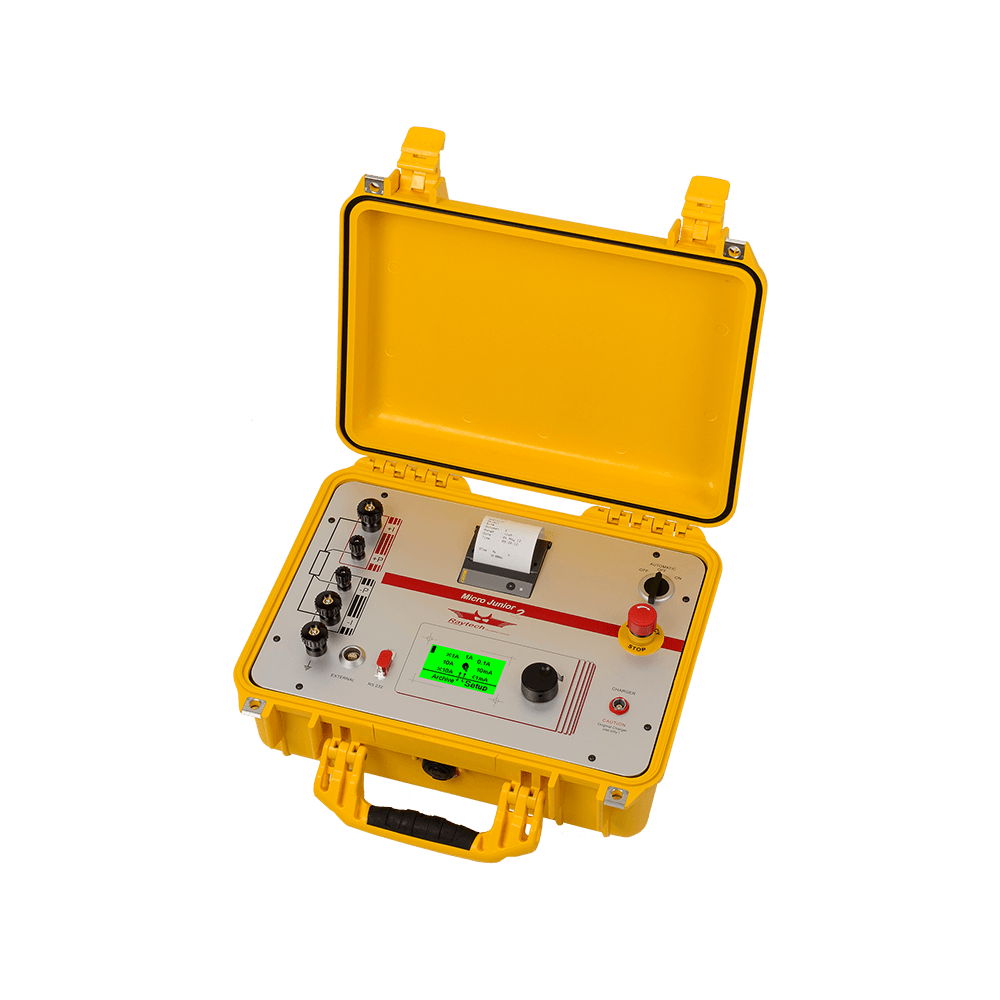

Micro Junior 2

Micro Ohm Meter 10A

Battery operated
Over 2000 tests with 10A output
Fully automatic, 0.00µΩ to 400kΩ

Product Flyer

TR-1 / TR-1P

Turns Ratio Meter 1 Phase

Battery and mains operated
Continuity test
Pass/Fail function
available with built in printer (TR-1P / 70032)

Product Flyer

WR50-13

Winding Resistance Meter 50Amps, 3 Channels

High power DC supply (50A/50V)
Demagnetisation and discharge
Color touch screen

Product Flyer

T-REX

3 Phase Voltage Extension to Turns Ratio Meter

Fully automatic
3 Phase voltage vector measuring
Rugged & reliable

Product Flyer

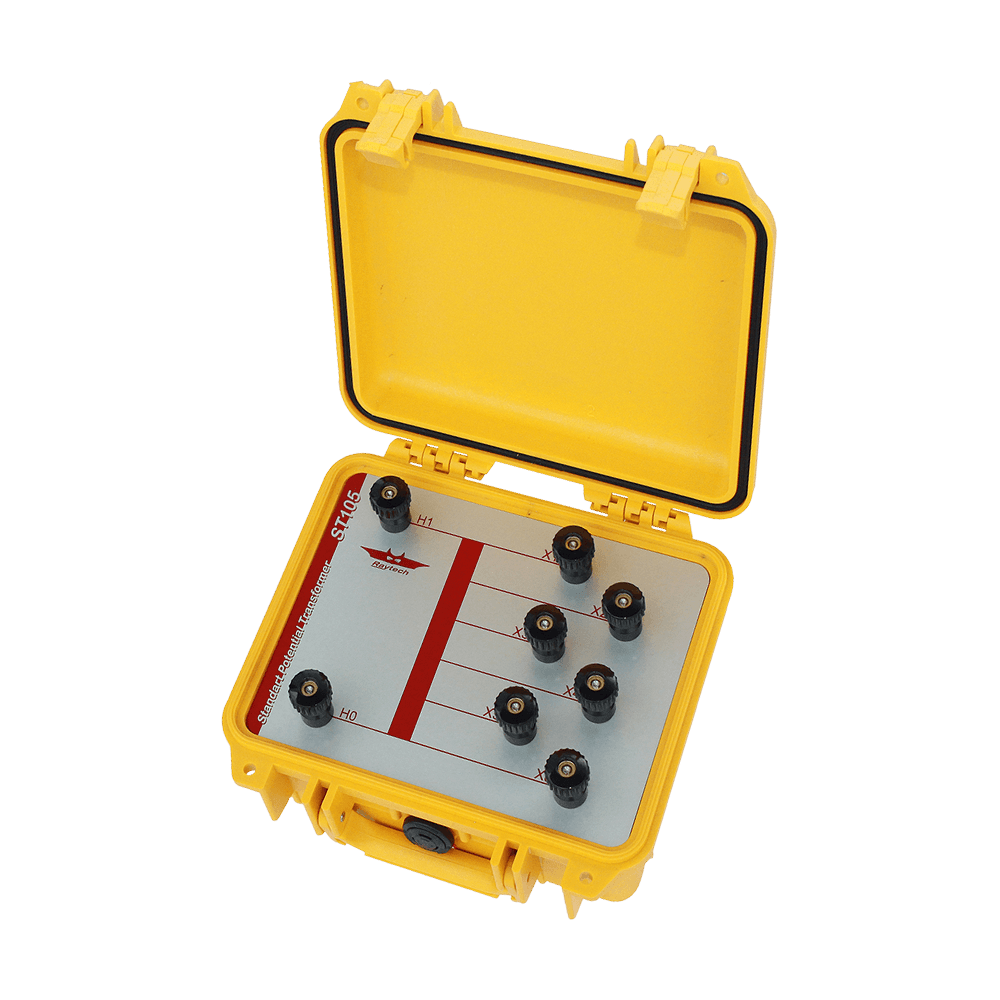

ST-105

Standard Ratio Box for Calibration

High accuracy
High stability
Certified

Product Flyer

ATOS

Automatic Transformer Observation System

Individually configurable
Operate on touch screen or by remote
Does all measurements with one cabling per transformer

Product Flyer

TR-MARK III R 250V

Turns Ratio Meter 3 Phase Rack

Fully automatic
Test voltage up to 250V
Automatic vector group detection

Product Flyer

WR100-12R

Winding Resistance Meter 100Amps, 2 Channels

High power DC supply (100A/50V)
Demagnetisation and discharge
Color touch screen

Product Flyer

WR100-13R

Winding Resistance Meter 100Amps, 3 Channels

High power DC supply (100A/50V)
Demagnetisation and discharge
Color touch screen

Product Flyer

WR50-12R

Winding Resistance Meter 50Amps, 2 Channels Rack

High power DC supply (50A/50V)
Demagnetisation and discharge
Color touch screen

Product Flyer

WR50-13R

Winding Resistance Meter 50Amps, 3 Channels Rack

High power DC supply (50A/50V)
Demagnetization and discharge
Color touch screen

Product Flyer

WR14R

Winding Resistance Meter 15Amps, 2 Channels Rack

Inductive loads up to 1500 Henry
Demagnetisation and discharge
Color touch screen

Product Flyer

T-REX R

3 Phase Voltage Extension to Turns Ratio Meter Rack

Fully automatic
3 Phase voltage vector measuring
19'' Rack mount version

Product Flyer

MUX-R

Multiplexer for Transformer Testing

Minimizes cabling time
All measurement with one cable WR and TR
Used for customized systems

Product Flyer

ISU-R

Integrated Safety Unit for ATOS

One main power switch for entire ATOS
Open system (not limited to Raytech Devices)
Indication for interlock circuit and warning lamp state

Product Flyer

T-Base Pro

Software for Transformer Measuring Professional

Full remote measurement
Transformer name plate setting
Measuring data exchange

Product Flyer

T-Base Lite

Software for Transformer Measuring Lite

Easy to use
Measuring data exchange
Simplicity over complexity

SDK

Software Development Kit

.NET Library
Full device functionality
Easely write your own application

Toolbox.NET

Software for Data Exchange

Free of charge
Data exchange
Firmware update
