3 Phase Voltage Extension to Turns Ratio Meter

T-REX

Product Number: 70003
  • Fully automatic
  • 3 Phase voltage vector measuring
  • Rugged & reliable
Raytech offers a 2 year standard warranty and 100% Swiss quality
Product variant
3 Phase Voltage Extension to Turns Ratio Meter
Field

Description

The Raytech three phase voltage system option T-Rex is an optional system accessory for 3-Phase transformer ratio meter test sets designed by Raytech (i.e. TR-MARK III).

T-Rex was designed to give Engineers and Test Technicians the ability to test the phase relationships and actual voltage ratios of transformer windings while applying three phase voltage.

The system (in connection with a 3 phase Raytech Turns Ratio Meter) precisely measures the ratio and angular relationship of transformer phases with voltage applied to all three phases simultaneously. This is a “real condition” measurement, which allows greater understanding of how the transformer will operate connected to a 3 phase system.

The T-Rex is especially useful for transformers with:

  • Phase relationships other than multipels of 30°.
  • Zig Zag windings.
  • Uncentered neutral points.
  • Suspected broken, damaged, or missing core laminations.

The T-Rex is contained within a separate yellow case and comes complete to connect to the
Raytech TR-Spy, TR-MARK II or TR-MARK III three phase transformer ratio meter.

Features

  • Outputs a pure three phase sine wave
  • Fully remote controlled by TR-MARK II and TR-MARK III
  • Single hook up to the transformer
  • Automatic selection of test voltage frequency
  • To measure phase relationships other than multiples of 30°
  • To measure phase shifting transformer
  • To measure power rectifier transformer
  • Unique system on market
  • Extremely rugged (can withstand a drop test of 1 meter)
  • 2 Year standard warranty

Specifications

Model:

T-Rex

Size:

L: 470 mm (18.5”) W: 371 mm (14.6”) H: 190 mm (7.5”)

Weight:

7.8 kg (17.2 lbs.)

Input power:

100 to 250 VAC, 50 / 60 Hz, automatic ranging

Test voltage:

3 phase 24 VAC 50 / 60 Hz auto selecting

Front panel:

sealed, anodized

Operating temperature:

-10ºC to +60° C

Storage temperature:

-20°C to +70°C



See instruction manual for more parameters.

Specifications are subject to change without notice.



Accuracy

Output parameters



Voltage

Accuracy*

Phase Accuracy*

Current

3 x 24 Vac

± 0.08%

0.08 Degree

0 ... 200mA

* between phases





Turns ratio range:

0.8 to 4'000



In the box

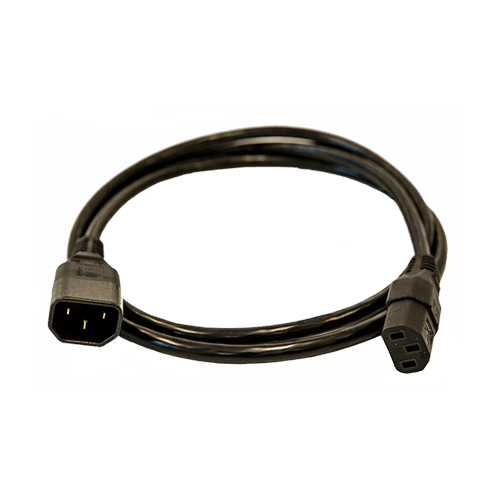

Jumper Cable for T-REX

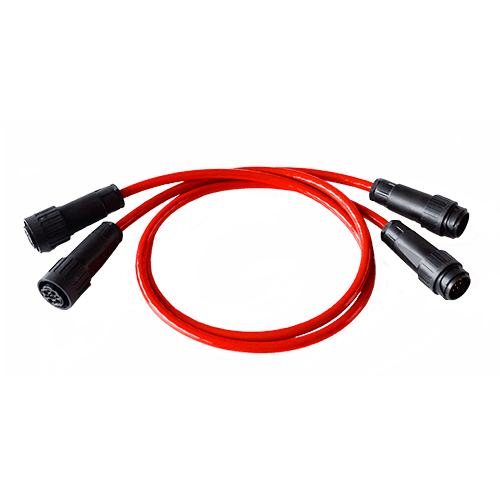

Lead Cables H and X for T-REX and T-REX-R
2x 1m

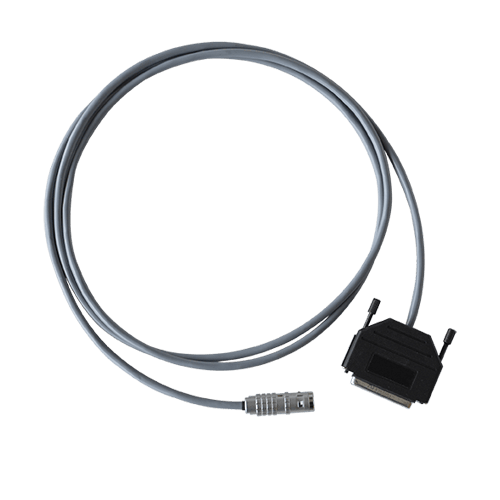

Interface Cables for T-REX and T-REX-R
connection to TR-MARK III

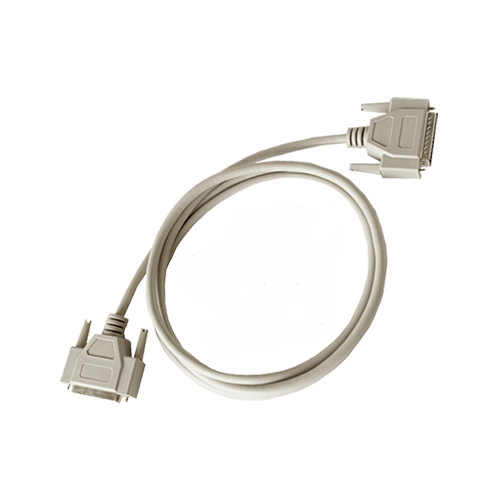

Interface Cables for T-REX and T-REX-R
connection to TR-MARK II
Instruction Manual - T-REX
