TR-MARK III 250V

Turns Ratio Meter 3 Phase

Product Number: 70049
  • Fully Automatic
  • Test Voltage up to 250V
  • Automatic Vector Group Detection
Raytech offers a 2 year standard warranty and 100% Swiss quality
Product variant
TR-MARK III 250V
Field

Description

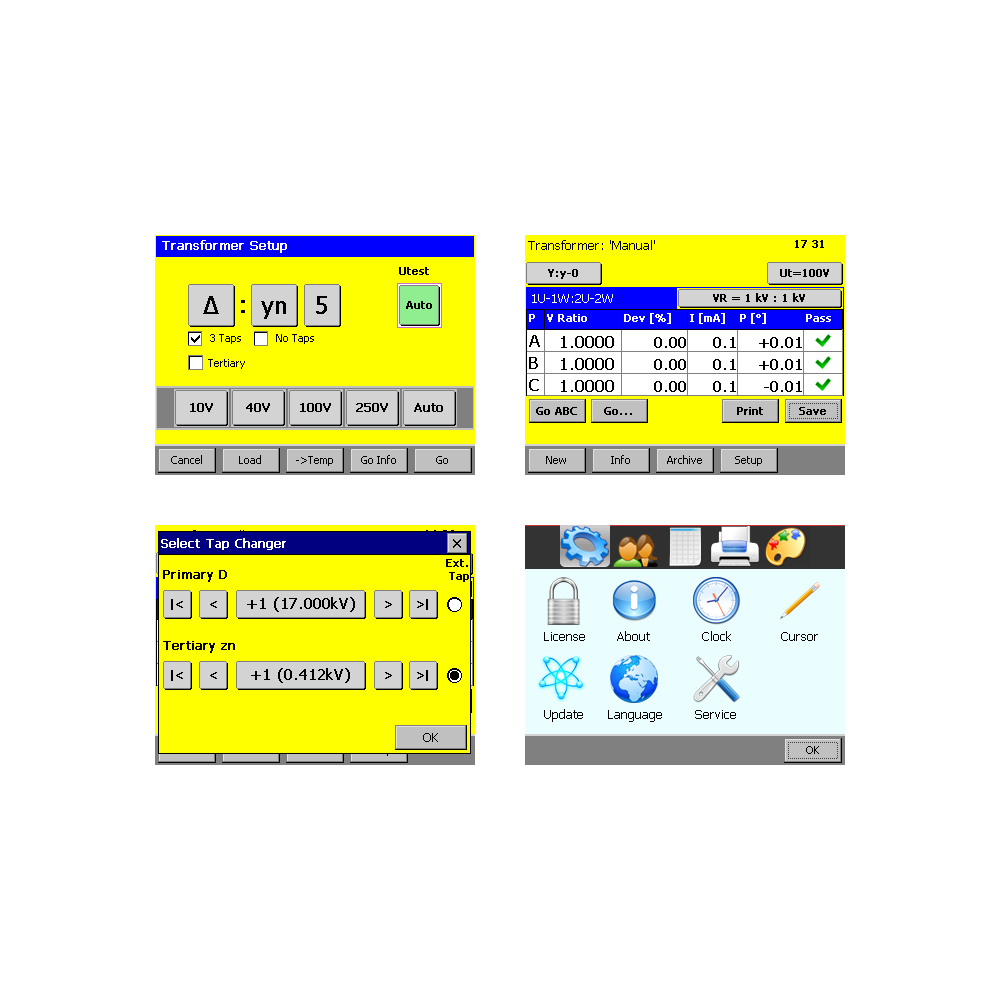

The TR-MARK III 250V is a 3-phase power transformer test instrument specially designed for professional turns ratio measurement. The professional turns ratio measurement is not just a typical pass/fail test to check that the deviation error is less than the limit values! For precise diagnosing and preventive maintenance, high precise measurement is required. In addition to precision, the TR-MARK III 250V provides useful tools such as the plotting tool on the colour touch display for this aim.


The TR-MARK III 250V can perform the full turns ratio measurement in the least possible time and in a fully automatic easiest way. For a three-phase two-winding power transformer, only one time hook up of the test clamps is required.


The on-load tap changer or motorized de-energized tap changer can be controlled automatically by the instrument. Even the actual tap position can be identified automatically, thanks to the smart features of the TR-MARK III 250V. The full three-phase measurement of the turns ratio, excitation current, phase displacement and calculated deviation error for all taps can be performed fully automatic without the interaction of the user during the measurement.

Features

Measurement Methods

  • Power transformers, PT’s and CT’s measurement
  • Turns Ratio, Excitation current, Phase displacement and Deviation error measurement

Additional Features

  • Easy one time hook up to the transformer
  • Tap changer automatic control connection and external test switch for manual tap changing
  • Load on test object <0.05 VA
  • Automatic vector group identification
  • Automatic selection of suitable test voltage
  • Automatic actual tap position identification
  • Optional T-REX external source, to generate 3 phase pure sine wave for special measurements.

User Interface and Data Management

  • User-friendly interface
  • Test object Profile and Template creation, import and export
  • Data exchange via USB-Key, serial cable and USB cable

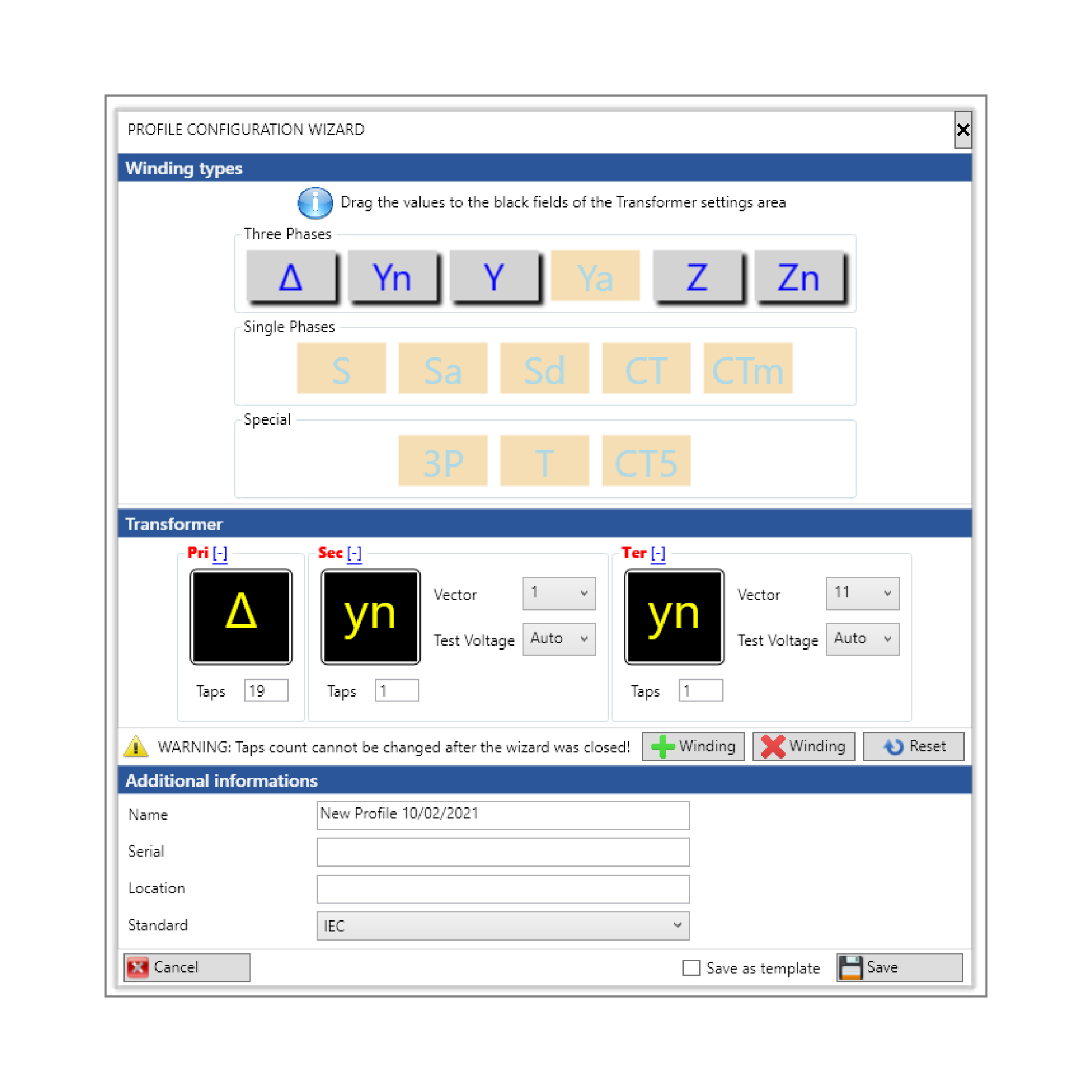

  • Free T-Base Pro software for data exchange, profile and template management and report generation

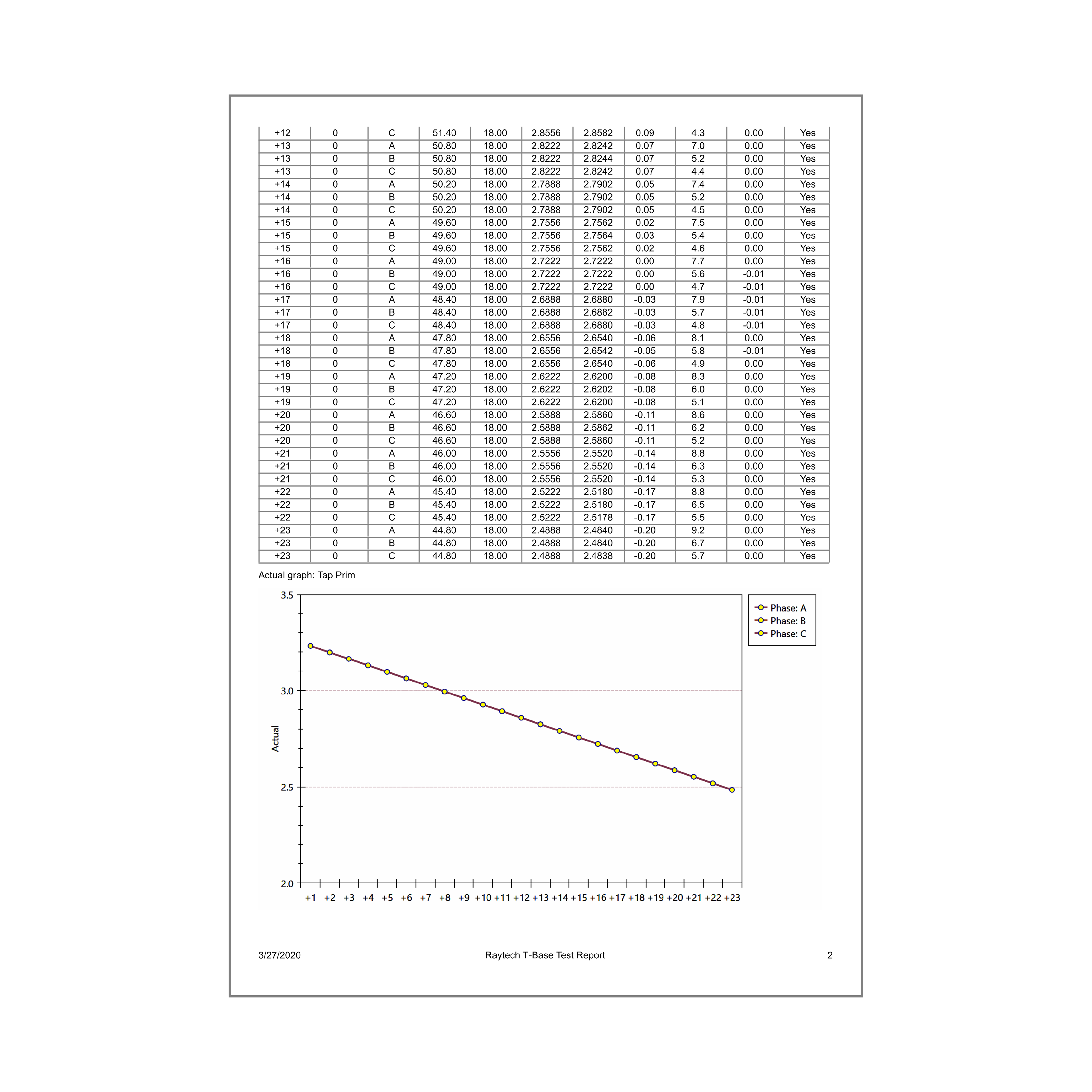

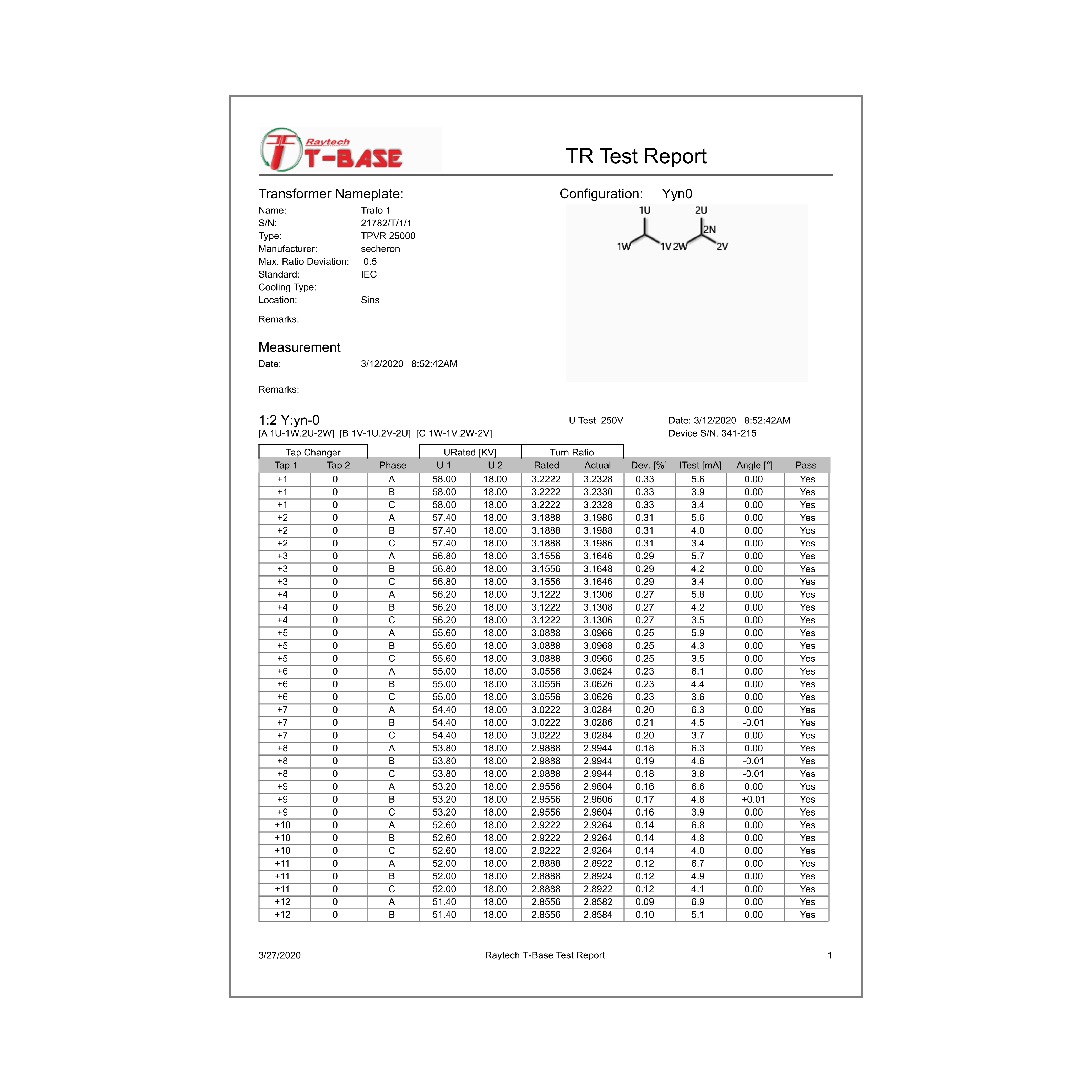

  • Report generation in various formats
  • Full remote control T-Base Pro PC software (Optional)
  • The free command set for remote control of the instrument

Durability and Support

  • The enhanced smart heavy-duty protection system
  • Extremely rugged (can withstand a drop test of 1 meter)
  • Software and firmware update
  • Raytech technical support
  • 2 years standard warranty

Specifications

Area of use:

Portable to use indoor and outdoor including heavy industrial electromagnetic environments

Enclosure:

Industrial high-impact plastic case

Supply:

IEC 60320, C13/C14 mains connector, CAT II

Absolute input voltages:

90-132/ 180-264 VAC @ 47-63Hz

Consumption power:

Max. 150VA

Output power:

Max. 100W

Test voltage user selectable:

1, 10, 40, 100 and 250VAC

Max. test current:

1A

Display:

5.7" TFT Color LCD

Input devices:

Touch screen, support mouse and keyboard

Interfaces:

2 USB 2.0 full speed (1 host, 1 device) and 9 Pin RS232 serial

Internal memory storage:

10000 test results

Printer:

Internal 1.9" thermal printer, support external printer direct connection

Operating temperature:

-10°C (14°F) to +55° C (131°F)

Storage temperature:

-20°C ( -4°F) to +70°C (158°F)

Degree of protection (closed door):

IP67, dust-tight and water immersion up to a 1-meter depth

Size:

L: 472 mm (18.6”) W: 368 mm (14.5”) H: 196 mm (7.7”)

Weight (instrument):

10.5kg (23.1 lbs.)

See Instruction Manual for more Parameters

Specifications are subject to change without notice



Accuracy

Measurement parameters







Turns ratio at 250V



Range

Accuracy

Resolution



0.8 ... 5000

±0.06% Rdg ±1 LSD

5 Digits



5001 ... 10000

±0.1% Rdg ±1 LSD

5 Digits



10001 … 32500

±0.3% Rdg ±1 LSD

5 Digits



32501 … 40000

±0.4% Rdg ±1 LSD

5 Digits







Turns ratio at 100V or 40V



Range

Accuracy

Resolution



0.8 ... 2000

±0.06% Rdg ±1 LSD

5 Digits



2001 ... 4000

±0.1% Rdg ±1 LSD

5 Digits



4001 ... 13000

±0.3% Rdg ±1 LSD

5 Digits



13001 … 16000

±0.4% Rdg ±1 LSD

5 Digits







Turns ratio at 10V



Range

Accuracy at 10V

Resolution



0.8 ... 2000

±0.15% Rdg ±1 LSD

5 Digits



2001 ... 4000

±0.3% Rdg ±1 LSD

5 Digits







Current

Accuracy

Resolution



0 ... 1A

±0.001A

0.1mA







Phase angle

Accuracy

Resolution



±90 Degree

±0.05 Degree

0.01 Degree







Turns ratio range



0.8 to 45'000



In the box

USB Memory Stick
Standard Cable Bag

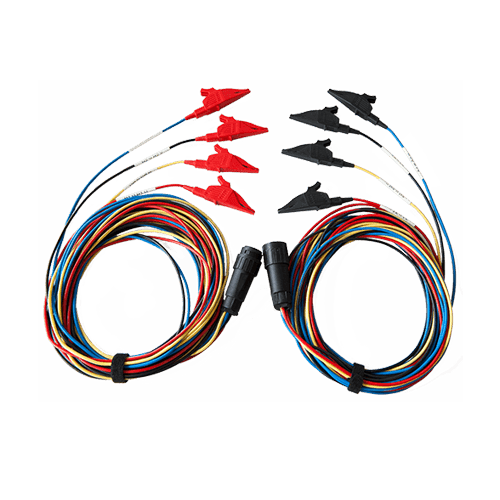

Lead Cables H and X for TR-MARK-III 250V
2x 5m
Extension Measurement Cables
2 x 10m
Power Cord
TRZ-212

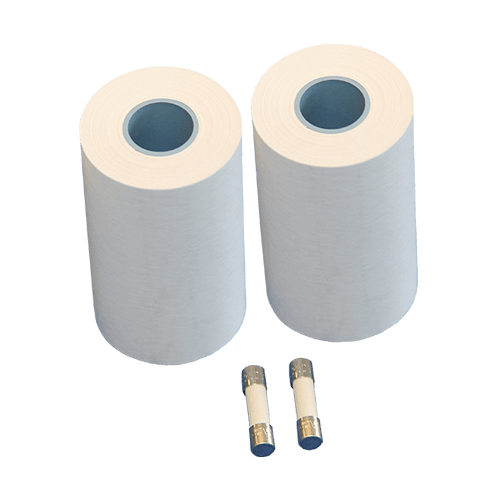

2 Paper Rolls and 2 fuses

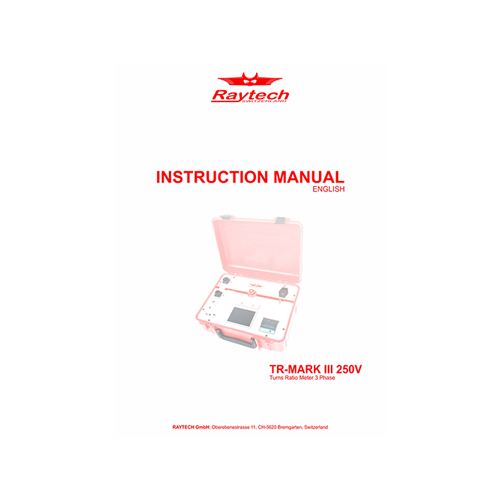

Instruction Manual - TR-MARK III

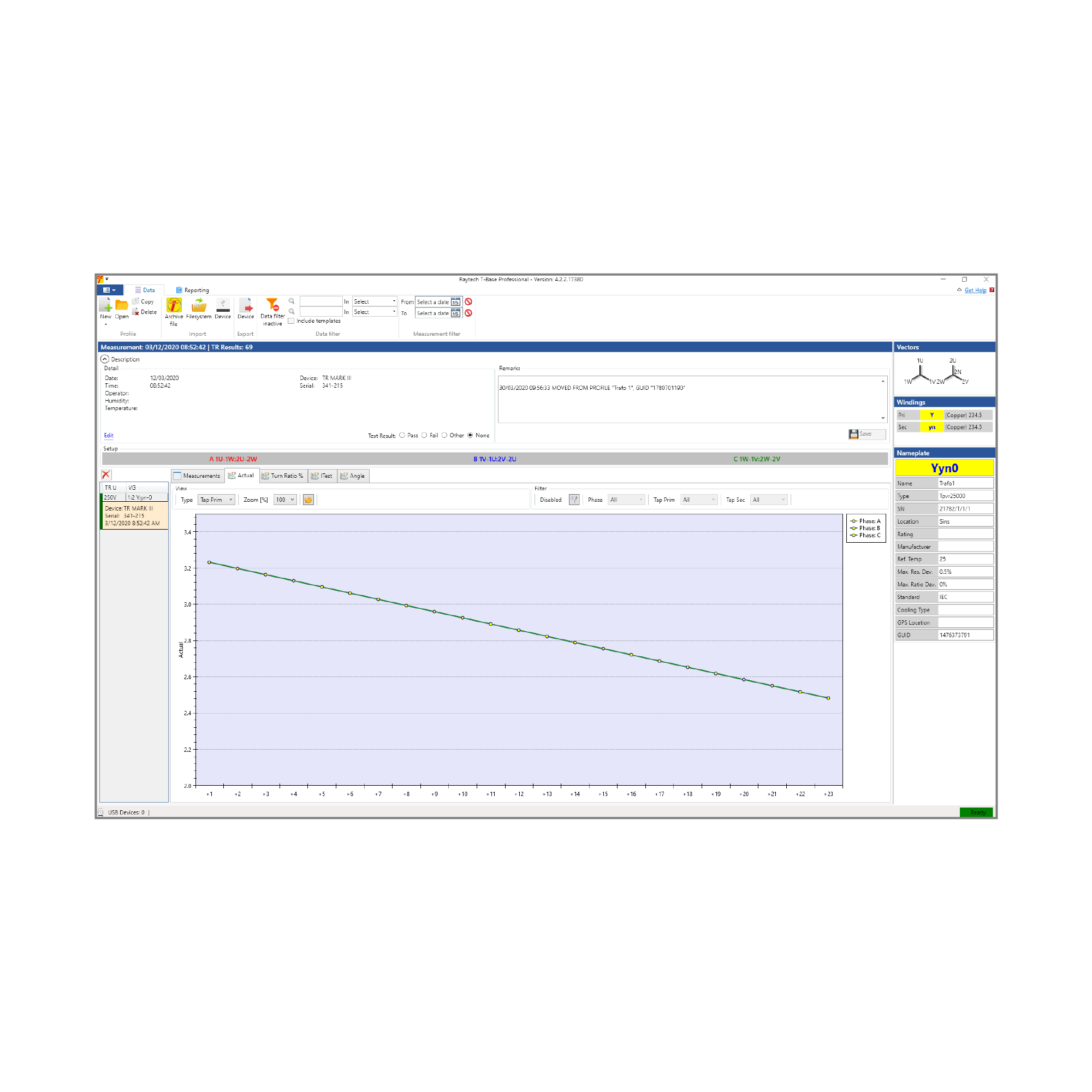

Software T-Base Pro
Powerful Software for Remote Control, Data Exchange and Analysis

Optional items

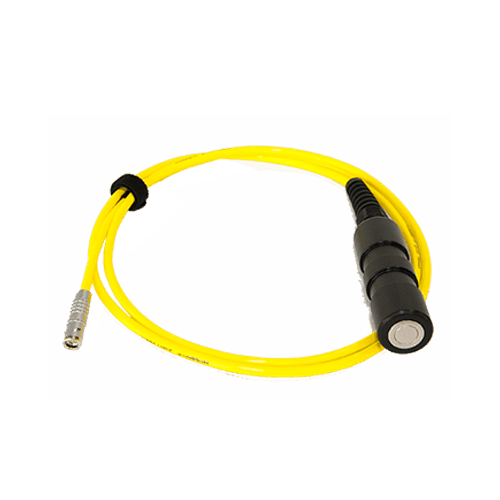

TRO-203
External Hand Switch for Tap Changer Testing

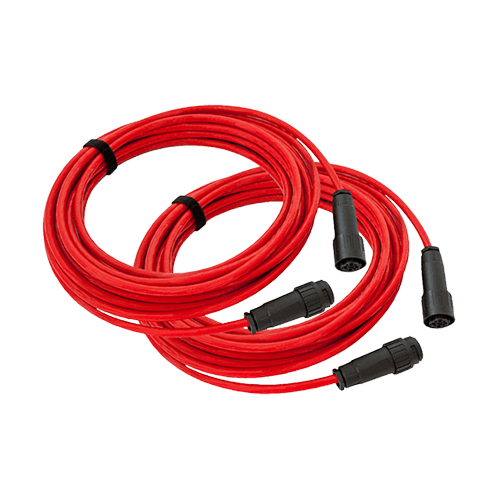

TRO-205
Additional Extension Measurement Cables 2 X 10m
Software T-Base Pro Extension Remote
Remote control
Software T-Base Pro Extension Sequence
Full automatic test sequences
