Automatic Transformer Observation System

ATOS

Product Number: 70055
  • Individually configurable
  • Operate on touch screen or by remote
  • Does all measurements with one cabling per transformer
Raytech offers a 2 year standard warranty and 100% Swiss quality

Description

Raytech – The World leader in design and manufacturing of high-quality precision measuring instruments and systems, offering flexibility and versatility. Our modular Automatic Transformer Observation System (ATOS) allow you to create a unique and custom solution for any application. ATOS is designed to drastically reduce measuring time and increase test performance, without losing accuracy compared to individual test instruments. With the choice of up to three Multiplexers (primary, secondary, and tertiary), three Winding Resistance Meters, each with three maximum current range options (up to 15A, 50A, or 100A), Turns Ratio, and Integrated power security and safety panel (ISU R), Raytech can create a system with your needs and budget in mind.

Features

  • Minimizes cabling time
  • Does all measurements with one cabling per transformer, including Winding Resistance and Turns Ratio

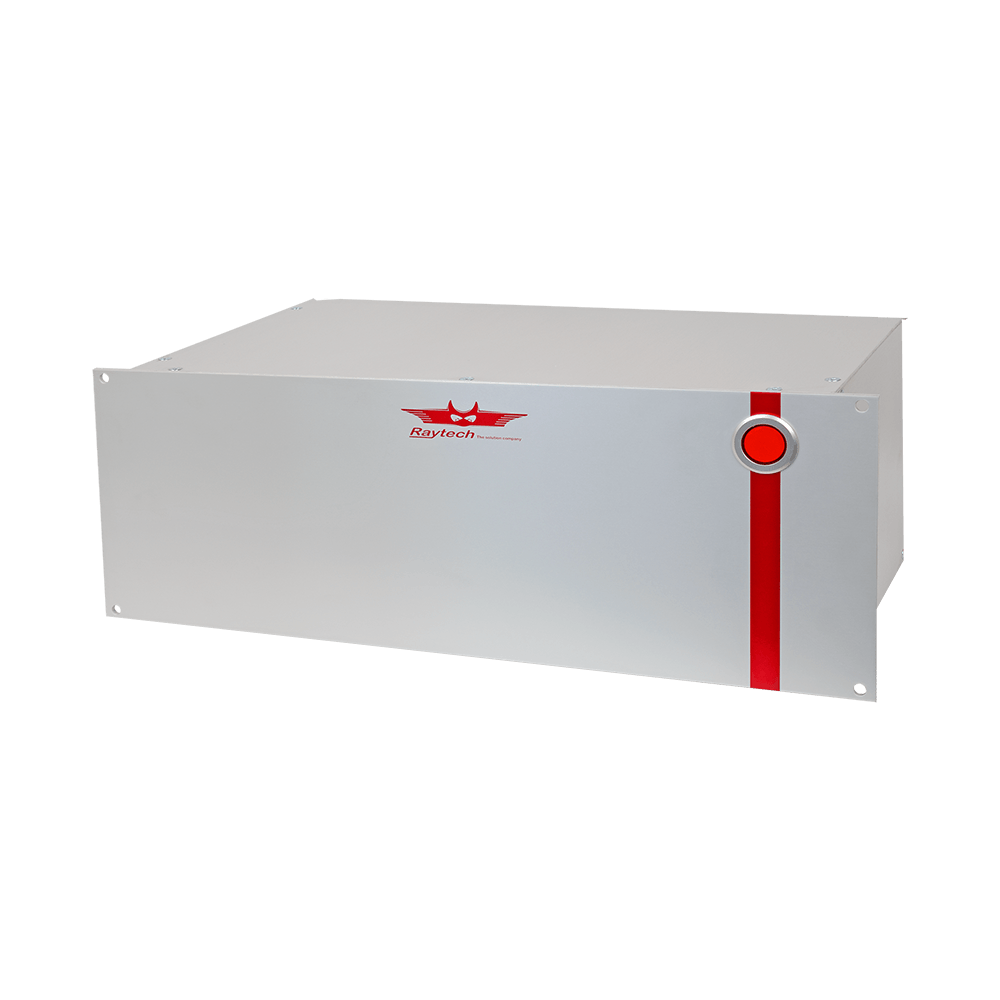

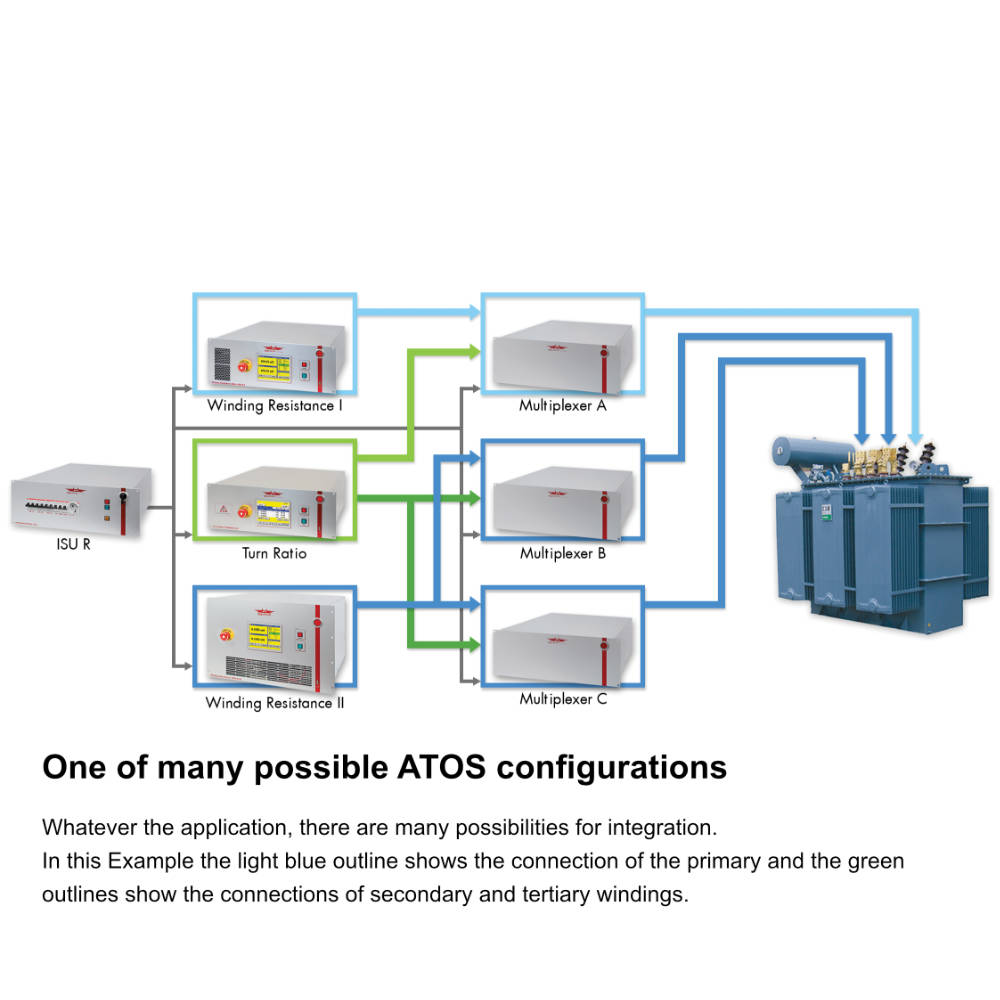

  • Uses up to three Multiplexers and measures transformers with three winding systems with one cabling sequence
  • No Precision loss compared to single use of devices
  • Different currents at same time on Primary and Secondary

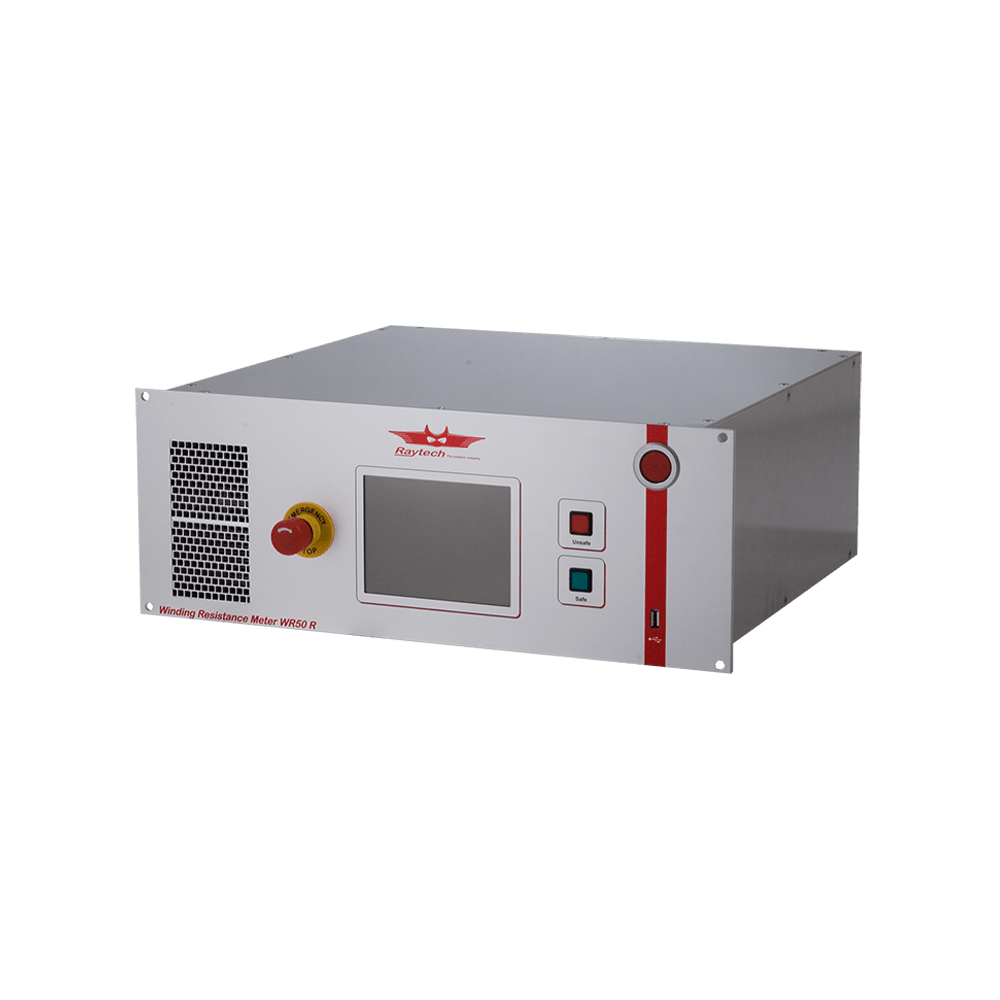

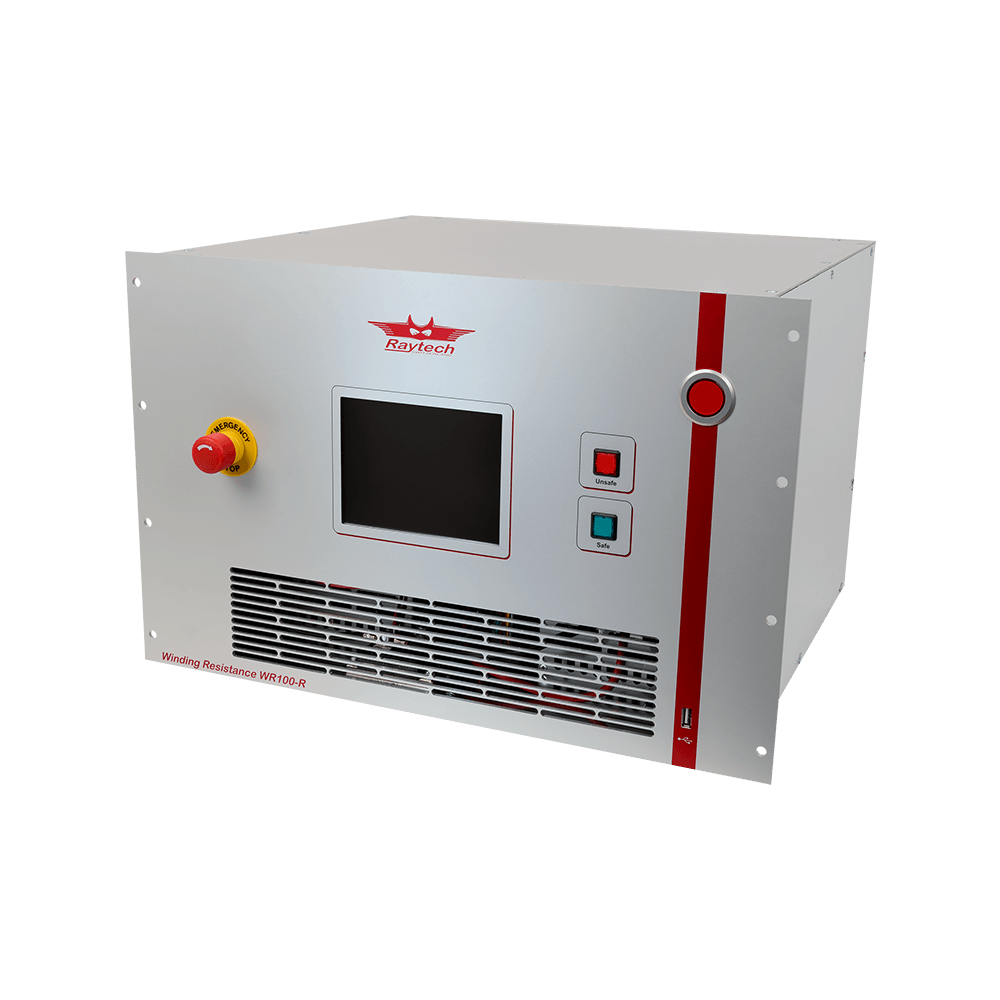

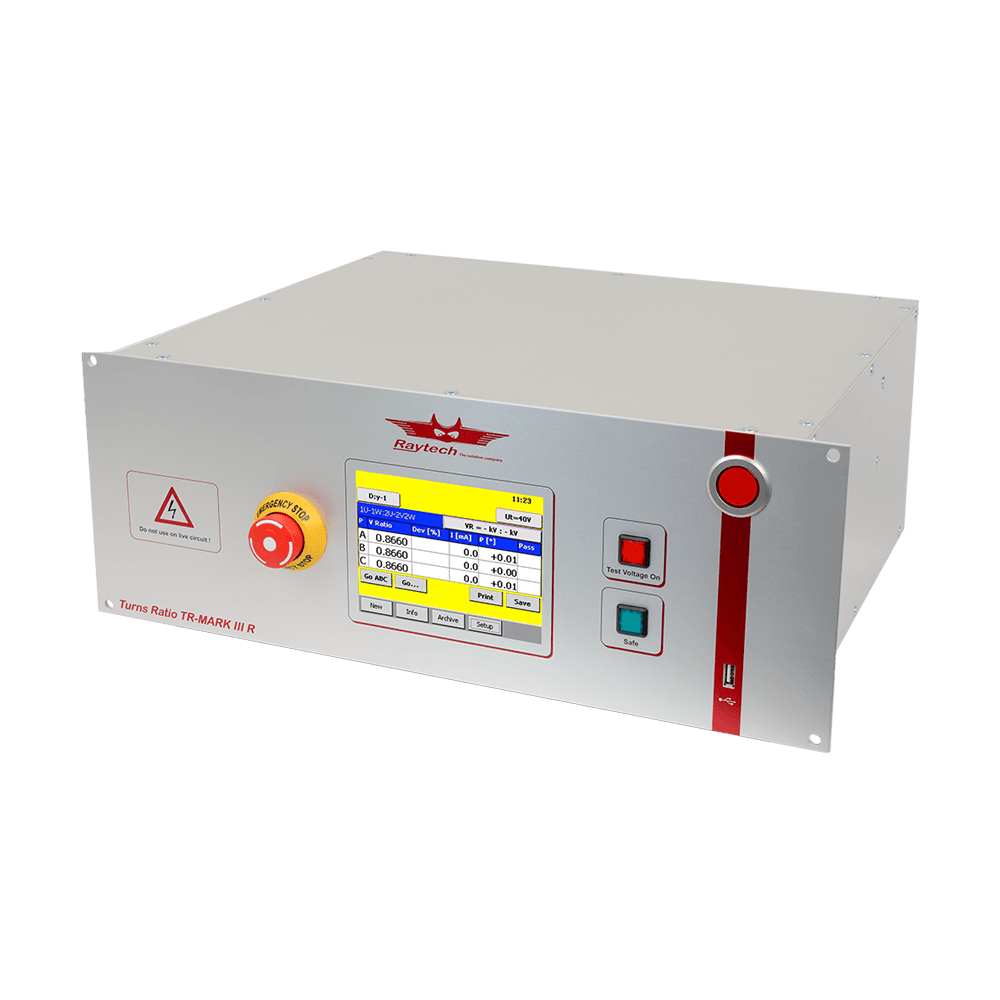

  • Get your own configuration containing from one to three Multiplexers, from one to three Winding Resistance Meters and one Turns Ratio Meter
  • Control your Tap Changer with a powerful tap changer interface
  • Operate all instruments on a touch screen or by remote control

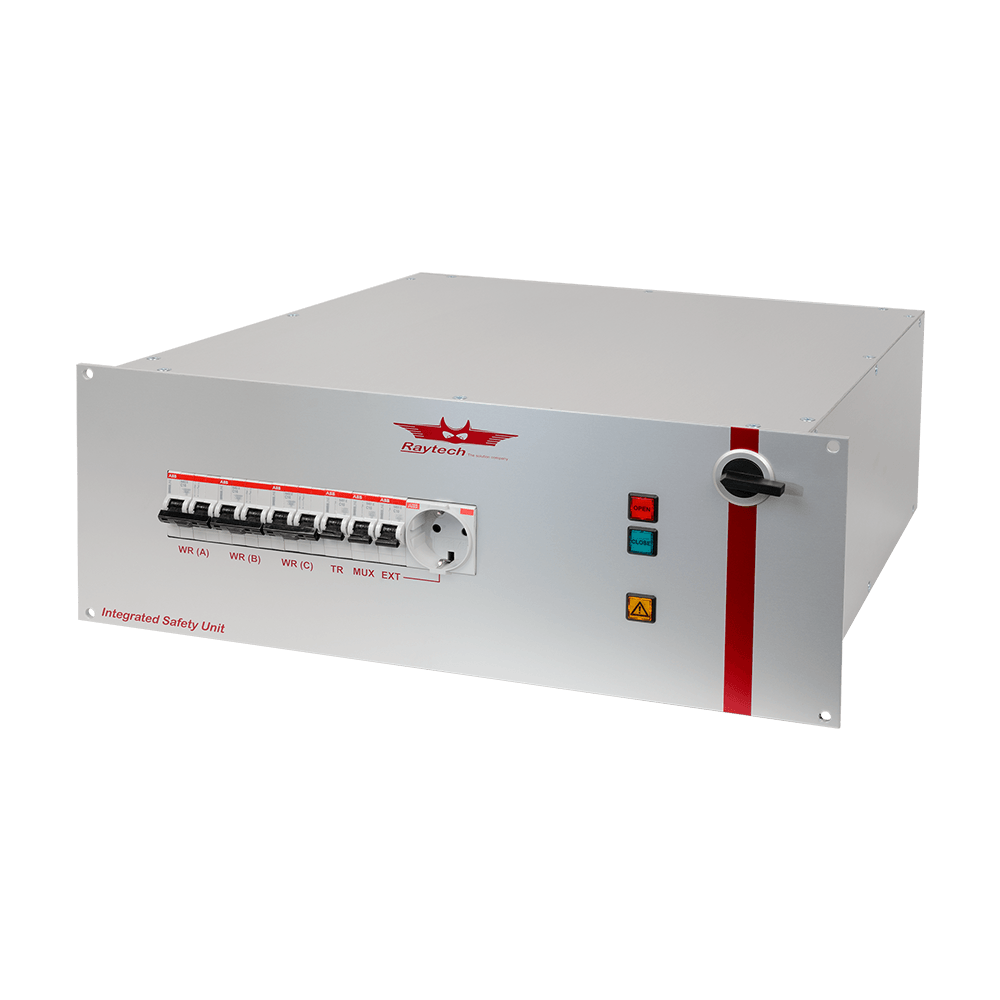

  • Integrated Safety Unit providing fused electrical power, central interlock system and central warning lamp interface

Specifications

Turn Ratio Accuracy:

Up to 0.06%

Phase relations:

Any angle (not limited to 30° steps)

Winding resistance accuracy:

Up to 0.1% ±0.05µΩ

Winding resistance DC supply:

Up to 100A / 50V

Demagnetizing:

fully automatic

Heat run test:

Available on Winding Resistance

Case:

Custom 19’’ Rack Shelf

Interface:

USB

Remote control:

Individual software or by Raytech T-Base Pro

Input power:

88 to 264 VAC, 47...63 Hz



See Instruction Manual on the specific Instrument for more Parameters.

Specifications are subject to change without notice.



In the box

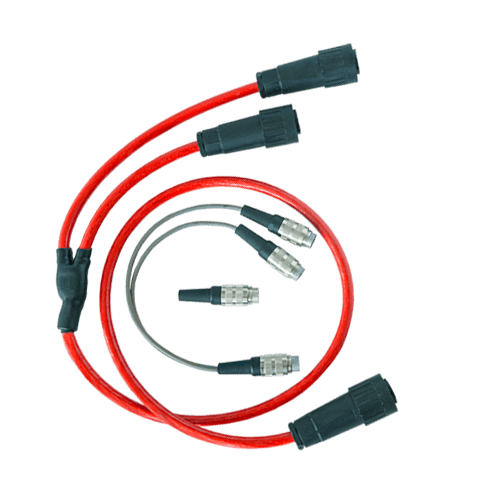

MPZ-111
Accessories MUX

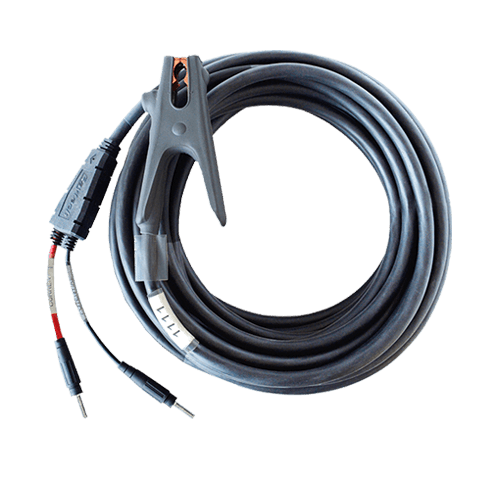

MPZ-115
Cable Set Type Multiplexer 1CH-MC 3 Phase Kelvin , 1 Channel 3 Phase, Length 15m
Software T-Base Pro
Powerful software for remote control, data exchange and analysis

Optional items

Software T-Base Pro Extension Sequence
Full automatic test sequences
Software T-Base Pro Extension Remote
Remote control
USB-Hub
