Micro Junior 2

Micro Ohm Meter 10A

Product Number: 70025
  • Battery operated
  • Over 2000 tests with 10A output
  • Fully automatic, 0.00µΩ to 400kΩ
Raytech offers a 2 year standard warranty and 100% Swiss quality

Description

Raytech Digital Micro ohm meter, Micro Junior 2, is designed for a high degree of accuracy to measure very low resistances. It is battery operated with a lithium-ion battery that allows over 2000 test measurements with 10A output without recharging.


The MJ-2 is a high precision, fully automatic, microprocessor-based system. This system is designed for highly accurate readings on-site with laboratory precision.


The MJ-2 applies a preset current level, selected by the user. The results of the test are displayed within a few seconds automatically. The results are reported on the easy to read liquid crystal display and can be stored or printed out.


The Micro Junior 2 is one of the most lightweight systems available that comes complete with its own rugged waterproof field case.

Features

Measurement Methods

  • Automatic measurements of low resistance from 0.00µΩ ... 400kΩ

Additional Features

  • Single or continuous measurements with automatic data storage
  • Automatic current reversal mode for highest accuracy
  • Possible to preset several tests, at various time intervals, for automatic data storage
  • Cable length correction feature useful for cable manufacturers
  • Pure filtered DC power source for the highest accuracy readings
  • Response time less than 2 seconds
  • Lithium Battery power source
  • Runs for more than 5 hours continuous at 10 amps
  • Single push-button operation
  • Complete automatic calibration system and system diagnostics

User Interface and Data Management

  • User-friendly interface
  • Data exchange via a serial cable
  • The free command set for remote control of the instrument
  • Printing and storage of test results while the test system is measuring

Durability and Support

  • Automatic shut off for over-temperature condition
  • The enhanced smart heavy-duty protection system
  • Lightweight and portable, less than 5.9kg (13Lbs.)
  • Firmware update
  • Raytech technical support
  • 2 years standard warranty

Specifications

Area of use:

Portable to use indoor and outdoor including heavy industrial electromagnetic environments

Enclosure:

Industrial high-impact plastic case

Supply:

External DC charger

Battery:

Lithium-Ion battery, 14.8V/ 6Ah

Charger absolute input voltages:

90-264 VAC @ 47-63Hz

Consumption power:

Max. 40VA

Output power:

Max. 9W

Test current user selectable:

0.001, 0.01, 0.1, 1 and 10 ADC

Max test voltage:

4VDC

Display:

Graphic LCD with backlight

Input devices:

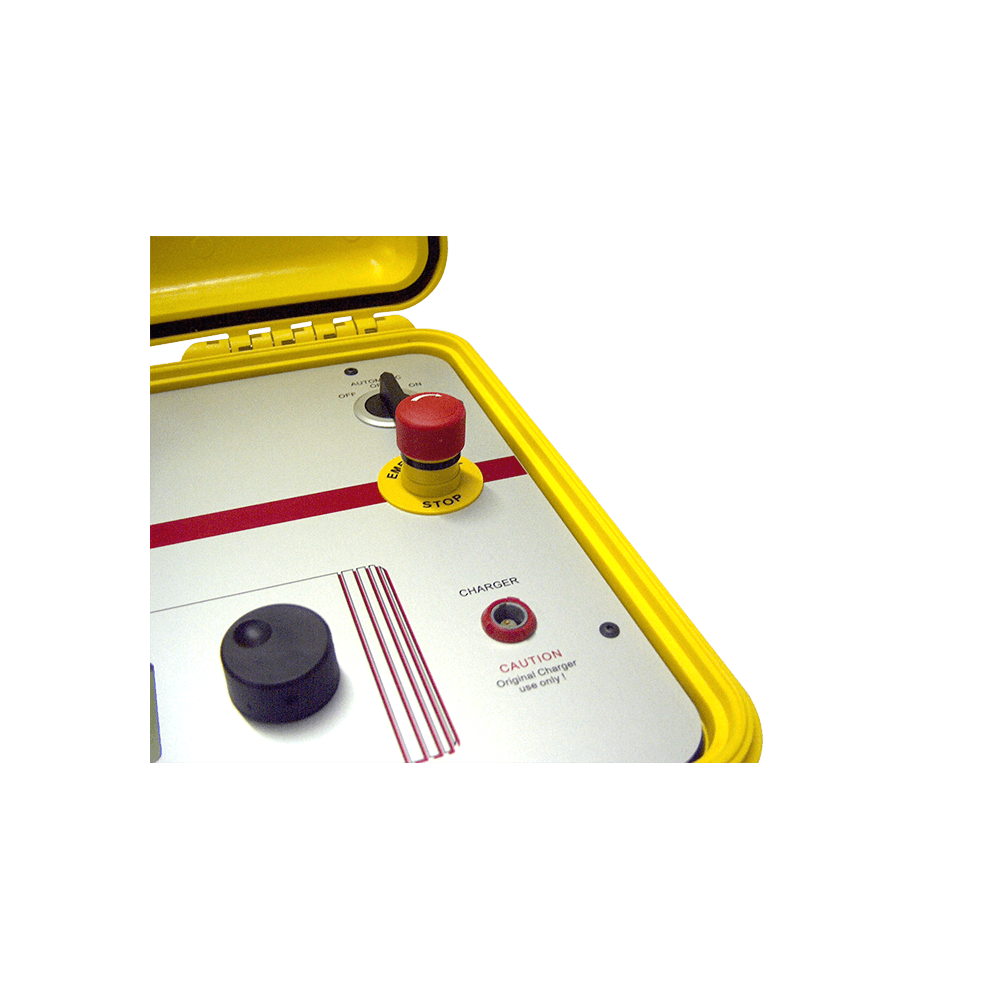

Multi-actuation rotary knob

Interfaces:

9 Pin RS232 serial

Internal memory storage:

2000 test results

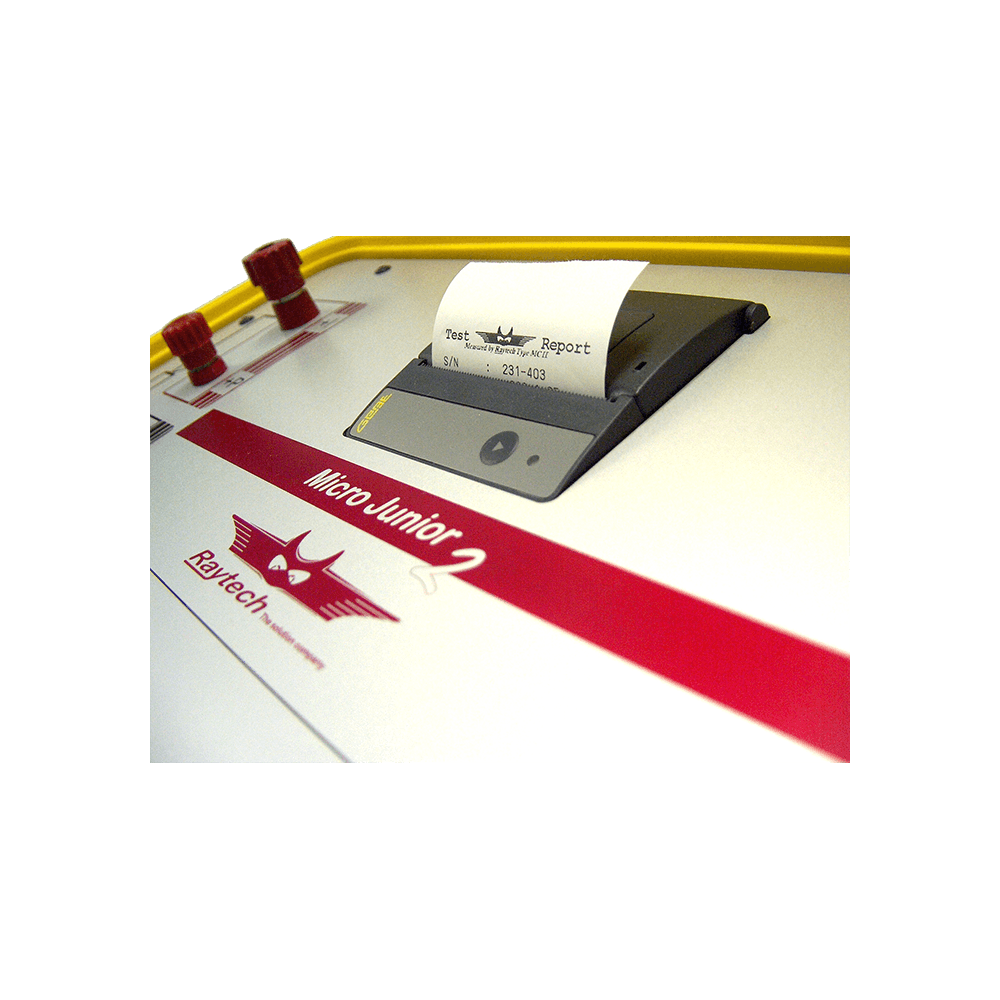

Printer:

Internal 1.9" thermal printer

Operating temperature:

-10°C (14°F) to +55° C (131°F)

Storage temperature:

-20°C ( -4°F) to +70°C (158°F)

Degree of protection (closed door):

IP67, dust-tight and water immersion up to a 1-meter depth

Size:

L: 418 mm (16.5”) W: 330 mm (13.0”) H: 173 mm (6.9”)

Weight (instrument):

5.9 kg (13 lbs.)

See Instruction Manual for more Parameters

Specifications are subject to change without notice



Accuracy

Measurement Parameters



Current range

Measuring range

Accuracy

Resolution

10 A F/R*

0.00 µΩ ...40 mΩ

± 0.1% Rdg ± 0.1 µΩ

5 Digits or 0.01 µΩ

10 A

0.0 µΩ ... 40 mΩ

± 0.1% Rdg ± 1 µΩ

5 Digits or 0.1 µΩ

1 A F/R*

0.0 µΩ ... 1 Ω

± 0.1% Rdg ± 1 µΩ

5 Digits or 0.1 µΩ

1 A

0.000 mΩ ... 1 Ω

± 0.1% Rdg ± 10 µΩ

5 Digits or 0.001 mΩ

0.1 A

0.00 mΩ ... 10 Ω

± 0.1% Rdg ± 0.1 mΩ

5 Digits or 0.01 mΩ

10 mA

0.0 mΩ ... 400 Ω

± 0.1% Rdg ± 1 mΩ

5 Digits or 0.1 mΩ

1 mA

0.0 Ω ... 40 kΩ

± 0.1% Rdg ± 0.1 Ω

5 Digits or 0.1 Ω

< 1 mA

40 kΩ ... 400 kΩ

± 1% Rdg

4 Digits



Resistance range

0.00µΩ to 400kΩ



* F/R = automatic Forward / Reverse current measurements



In the box

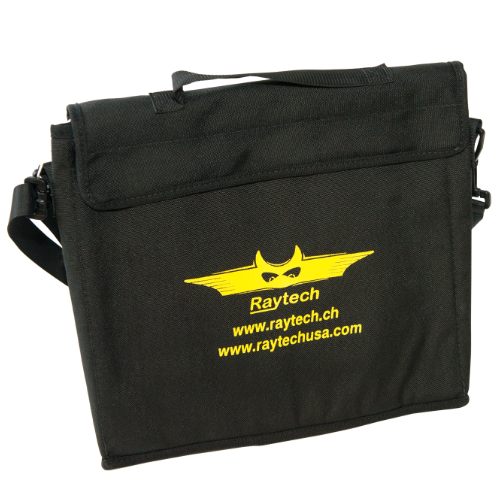

MJ-2 Cable Bag
Current Cables for MJ-2
2x 3m
Potential Cables for MJ-2
2x 3m

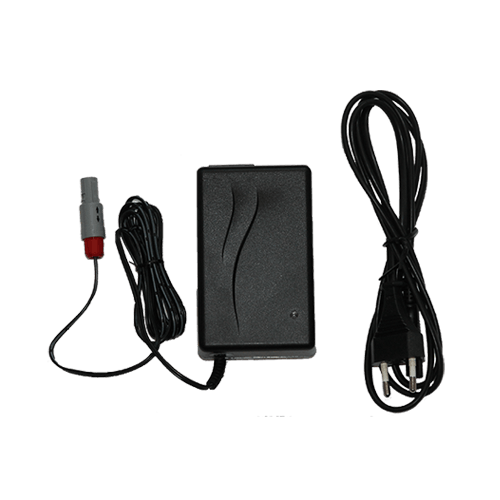

Power Cord Charger
100 to 265 VAC
Instruction Manual - MJ-2
2 Paper Rolls
Software Toolbox
Software for Data Exchange

Optional items

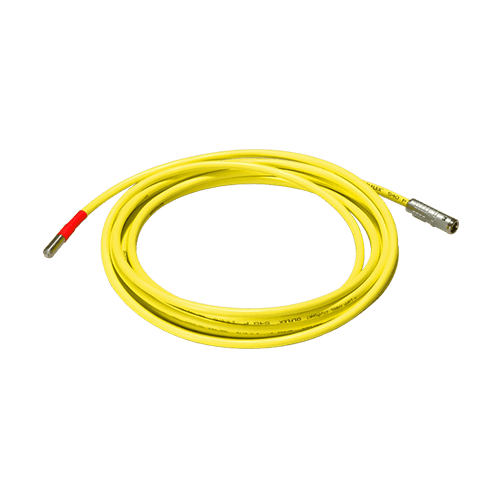

TP-X-1
External Temperature Probe

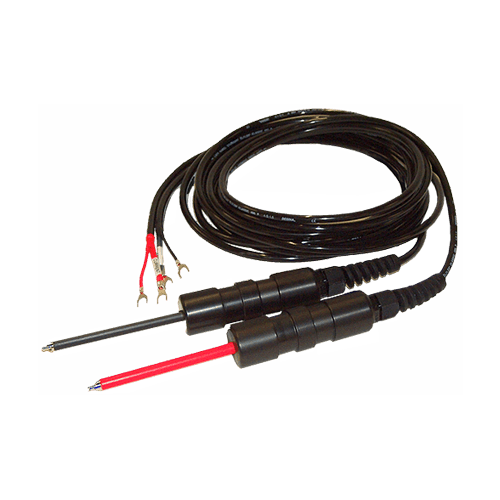

MJO-201
Kelvin Prope set

Downloads

Firmware Micro Junior 2

Category:
Firmware
Release:
2.39
Publish Date:
21.03.2024
Attachment Size:
314 KB
Description:

This is the newest Firmware for the Micro Junior 2

With the FlashLoader3.exe and a RS232 serial cable you can update the Firmware.

Installation:
recommended
Additional Document: FlashLoader3.exe

Flyer Micro Junior 2

Category:
Flyer
Release:
3.02
Publish Date:
26.04.2020
Attachment Size:
401 KB
Description:

Short overview about the Micro Junior 2

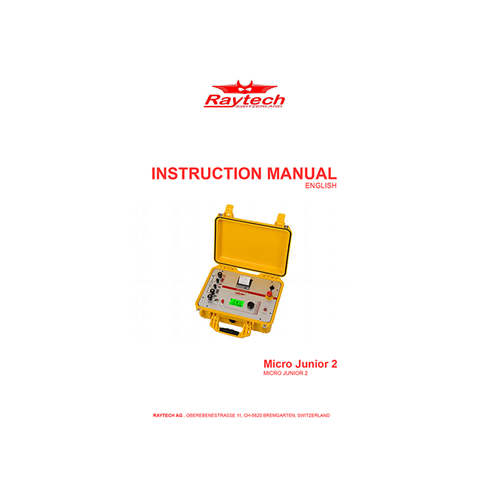

Instruction Manual Micro Junior 2

Category:
Instruction Manual
Release:
2.11
Publish Date:
26.04.2020
Attachment Size:
544 KB
Description:

This is the instruction manual for the Micro Junior 2

Command Set Micro Junior 2

Category:
Command Set
Release:
2.24
Publish Date:
26.04.2020
Attachment Size:
112 KB
Description:

This is a description how you can remote control the Micro Junior 2 over the serial interface.

Leaflet Temperature Probe TP 01

Category:
Leaflet
Release:
1.00
Publish Date:
27.04.2020
Attachment Size:
68 KB
Description:

This is a short description about the Temperature Probe TP 01 with technical specification.

Temperature Correction Micro Junior 2

Category:
Leaflet
Publish Date:
27.04.2020
Attachment Size:
70 KB
Description:

This is a short description about the temperature correction measurement with the Micro Junior 2.

The paper is only available in German.
