Winding Resistance Meter 50Amps, 3 Channels Rack

WR50-13R

Product Number: 70037
  • High power DC supply (50A/50V)
  • Demagnetization and discharge
  • Color touch screen
Raytech offers a 2 year standard warranty and 100% Swiss quality
Product variant
Winding Resistance Meter 50Amps, 3 Channels Rack
Rack

Description

Raytech Digital Winding Resistance meter WR50-13R is the enhanced version winding resistance system with a most advanced demagnetizing circuit as a rack version. It is designed for high degree of accuracy for the measurement of very low resistance of any inductive loads.

Unique Measuring Technique: This newly designed technique of measurement incorporates a high precision measurement circuit, a unique power source and the fastest discharge unit on the market.

Operation: The WR series of instruments apply a preset current level, selected by the user, from 0.025A to 50A .

The results are reported on the easy-to-read color LCD display and can be stored or printed.



Advanced Protection: Upon powering on the system initializes itself with a self-calibrating, circuit checking sequence. If any problem is detected during initialization or operation, the operator immediately will be notified. The system constantly monitors the condition when turned on. The WR series have extensive protection built in to the circuitry. This is one of the many reasons we can extend our warranty to 2 years.

Features

  • Highest Accuracy and Precision of any high current test system
  • Automatic measurements of Low Resistance from 0.00µΩ  ...100kΩ
  • Demagnetizing Circuit (Advanced design)
  • Microprocessor based system with internal storage for over 10000 test results
  • Data exchange via USB-Key or USB / RS Connection
  • Storage and Printing of test results with an external printer while the test system is measuring
  • Complete automatic calibration system and system diagnostics
  • Temperature channels with automatic resistance correction
  • Standard USB 2.0 & RS232 (serial) Interface
  • Pure filtered DC Power source for the highest accuracy readings
  • Automatic, high efficiency cooling system to dissipate internal heat
  • Automatic shut off for over-temperature condition
  • Color LCD with backlighting and touch screen
  • Panel mounted Emergency Stop Switch
  • 19" rack-mounting casing
  • Fully automatic cooling curve analysis (option AHRT 01)
  • Fastest discharge time in the market
  • 2 Year standard warranty

Specifications

Model:

WR50-13R

Size:

L: 490 mm (19.3”) W: 436 mm (17.2”) H: 177 mm (7”), Rack Unit: 4U

Weight:

16.6 kg (36.6 lbs.)

Input power:

90 to 264 VAC (1.5 kW max.), 47...63 Hz, automatic ranging

Output voltage:

0 to 50 V DC

Test current user selectable:

25 mA ... 50 A

Display:

Color LCD with back lighting and touch screen

Front panel:

sealed, anodized

Interfaces:

4 USB 2.0 full speed (3 host, 1 device) and 9 Pin RS232 serial

Memory storage:

Internally stores more than 10 000 test results

Operating temperature:

-10ºC to +60° C

Storage temperature:

-20°C to +70°C



See Instruction Manual for more Parameters.

Specifications are subject to change without notice.



Accuracy

Measurement parameters



Current range

Measuring range

Accuracy

Resolution

30-50 A

0.00 µΩ ... 1.3 Ω

± 0.1% Rdg ± 0.05 µΩ

5 Digits or 0.05 µΩ

15-30 A

0.0 µΩ ... 3.3 Ω

± 0.1% Rdg ± 0.1 µΩ

5 Digits or 0.1 µΩ

8-15 A

0.0000 mΩ ... 6.3 Ω

± 0.1% Rdg ± 0.2 µΩ

5 Digits or 0.2 µΩ

3-8 A

0.0000 mΩ ... 16.7 Ω

± 0.1% Rdg ± 0.5 µΩ

5 Digits or 0.5 µΩ

1-3 A

0.000 mΩ ... 47.2 Ω

± 0.1% Rdg ± 1 µΩ

5 Digits or 1 µΩ

0.7-1 A

0.000 mΩ ... 71.4 Ω

± 0.1% Rdg ± 2 µΩ

5 Digits or 2 µΩ

0.3-0.7 A

0.000 mΩ ... 167 Ω

± 0.1% Rdg ± 5 µΩ

5 Digits or 5 µΩ

0.1-0.3 A

0.00 mΩ ... 500 Ω

± 0.1% Rdg ± 10 µΩ

5 Digits or 20 µΩ

25-100 mA

0.00 mΩ ... 2 kΩ

± 0.1% Rdg ± 20 µΩ

5 Digits or 10 µΩ

<25 mA

2 kΩ ... 10 kΩ

± 0.2% Rdg ± 200 mΩ

5 Digits or 200 mΩ

<25 mA

10 kΩ ... 100 kΩ

± 0.8% Rdg ± 20 Ω

4 Digits or 20 Ω



Resistance range:

0.00 µΩ to 100 kΩ



Inductance range:

0 Henry to 1500 Henry



In the box

Standard Cable Bag
Current Cables for WR-50
2x 10m
Potential Cables CH 1 10m
2x 10m
Potential Cables CH 2 10m
2x 10m

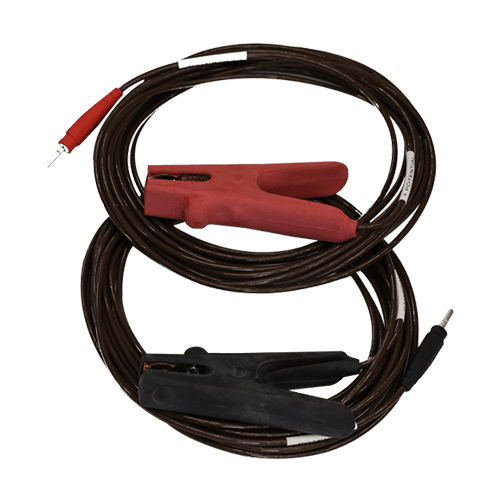

Potential Cables CH 3
2x 10m
Power Cord
WRZ-513

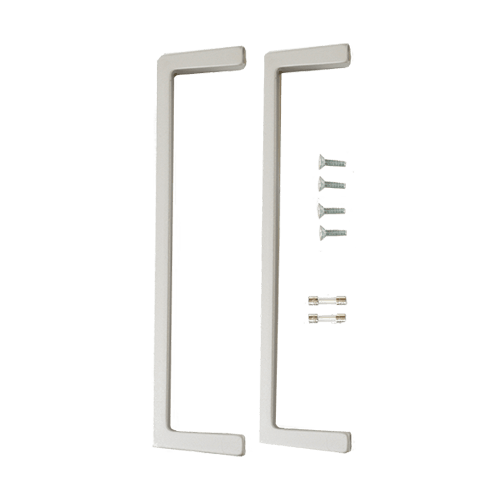

Set of Accessories for WR-50-12-R and WR-50-13-R (Rack Handles, Fuses)

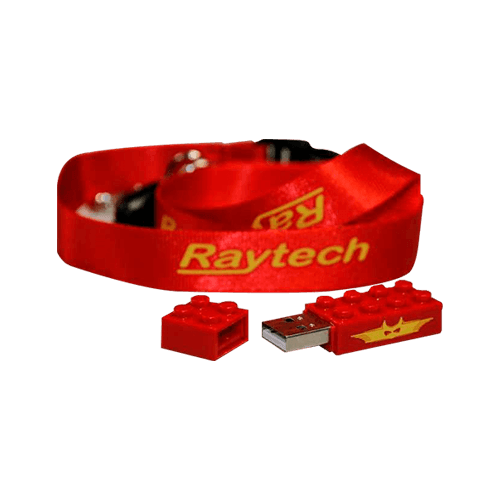

USB Memory Stick
Instruction Manual - WR-14-R/WR-50-R/WR-100-R
Software T-Base Pro
Powerful Software for Remote Control, Data Exchange and Analysis

Optional items

TP-01
External Temperature Probe 10m
TP-03
Set of 3 External Temperature Probes 3x 10m

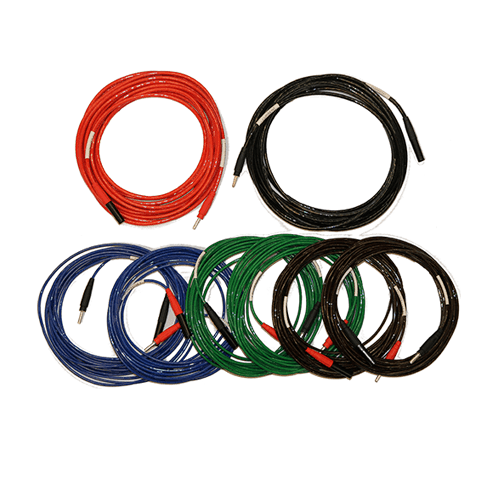

WRO-103
10m Cable Extension Set (Not With Option Screw Pole Connectors) You Can Add/Connect Multiple 10m Extensions Cables Together

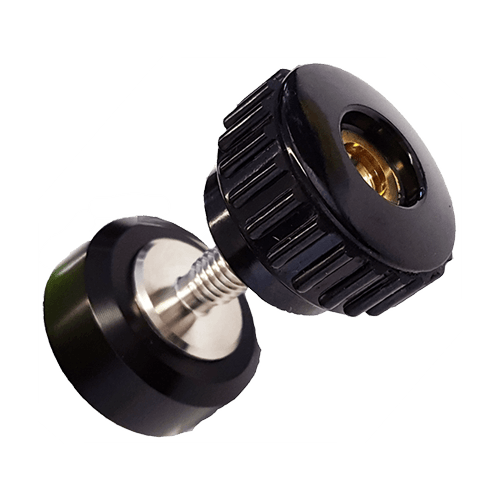

WRO-505 for WR-50
Screw Pole Connectors
AHRT-01
Automatic Heat Run Test Software
Software T-Base Pro Extension Remote
Remote control
Software T-Base Pro Extension Sequence
Full automatic test sequences

Related Products

Downloads

Firmware WR

Category:
Firmware
Release:
3.4.5.0
Publish Date:
30.06.2022
Attachment Size:
2 MB
Description:

This Firmware is valid for the following products:

WR14, WR14 R, WR50-1x, WR50-1xR, WR100-12R, WR100-13R

The Firmware has integrated Transformer profiles, which can be very helpful. If you don't want to use them, go into the Setup on the instrument and deselect "Use Profiles" or download the old firmware version 2.7.12.0.

Installation:
recommended
Additional Document: raytech-firmwareupdate-wr.pdf

Command Set WR-xx

Category:
Command Set
Release:
3.02
Publish Date:
26.04.2020
Attachment Size:
391 KB
Description:

This is a summary of the commands to remote control the WR14, WR14R, WR50-1x, WR50-1xR, WR100-12R, WR100-13R over the RS232 or USB interface.

Leaflet Temperature Probe TP 01

Category:
Leaflet
Release:
1.00
Publish Date:
27.04.2020
Attachment Size:
68 KB
Description:

This is a short description about the Temperature Probe TP 01 with technical specification.

Quick Start Guide SDK WRxx

Category:
Command Set
Release:
1.00
Publish Date:
27.04.2020
Attachment Size:
294 KB
Description:

This is Quick Start Guide about the Software Development Kit for all Winding Resistance Meter from Raytech.

Flyer WR-50

Category:
Flyer
Release:
15.06
Publish Date:
26.04.2020
Attachment Size:
1 MB
Description:

Short Overview about WR50-1x, WR50-1xR

Instruction Manual WR-XX- Rack

Category:
Instruction Manual
Release:
3.04
Publish Date:
26.04.2020
Attachment Size:
7 MB
Description:

Instruction Manual for the Winding Resistance Meters in the field case for the following types:

WR14-R, WR50-1x-R, WR100-1x-R

Firmware WR (Old version)

Category:
Firmware
Release:
2.7.12.0
Publish Date:
08.12.2020
Attachment Size:
1 MB
Description:

This Firmware is valid for the following products:

WR14, WR14 R, WR50-1x, WR50-1xR, WR100-12R, WR100-13R

This firmware is suitable for the older instrument (with the CPU model: NetDCU), for serial numbers less than 350-000. These instruments can work with newer firmware but it is slow and we recommend to use this firmware version instead.

Installation:
recommended
Additional Document: raytech-firmwareupdate-wr.pdf
