ISU-R

Integrated Safety Unit for ATOS

Product Number: 70054
  • One main power switch for entire ATOS
  • Open system (not limited to Raytech Devices)
  • Indication for interlock circuit and warning lamp state
Raytech offers a 2 year standard warranty and 100% Swiss quality

Description

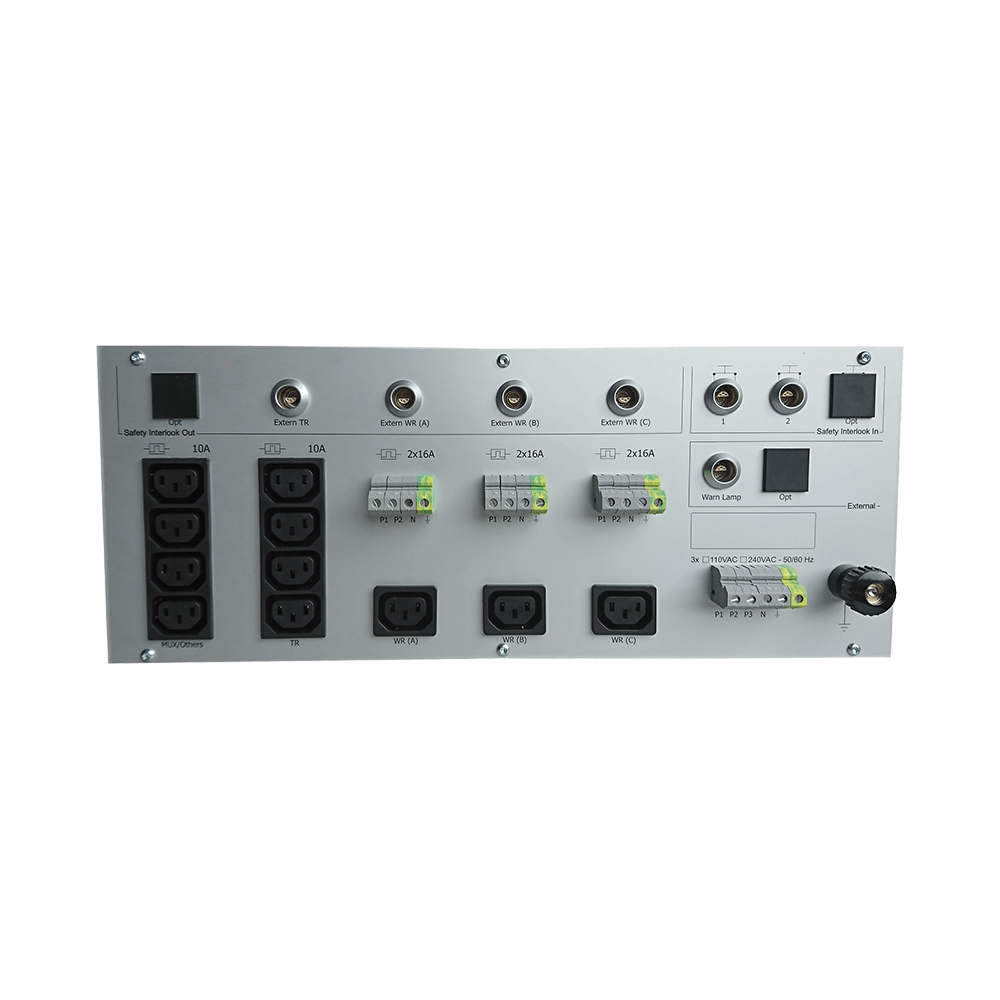

Raytech Integrated Safety Unit is a useful device when creating rack mounted transformer observing systems. It supplies Raytech devices with fused electrical power, manages external Interlocks and provides a single interface for an external warning lamp. The whole system can be turned on and off with a single mains switch.

Features

  • One main power switch for entire ATOS
  • Handles external interlock signal
  • Connect one warning lamp for all devices
  • Proper and fused AC power distribution
  • Additional fused power plug on front panel
  • Indications for interlock circuit and warning lamp state
  • Open system (not limited for Raytech devices)
  • 2 Year standard warranty

Specifications

Area of use:

Indoor including heavy industrial electromagnetic environments

Enclosure:

Aluminium rack mounted case

Supply:

IEC 60320, C13/C14 mains connector, CAT II

Rack unit:

4U

Absolute input voltages:

90-264 VAC @ 47-63Hz

Operating temperature:

-10°C (14°F) to +40° C (104°F)

Storage temperature:

-20°C ( -4°F) to +70°C (158°F)

Size:

L: 490 mm (19.3”) W: 436 mm (17.2”) H: 177 mm (7”)

See Instruction Manual for more Parameters

Specifications are subject to change without notice



In the box

Power Cord
Instruction Manual - ISU-R

Optional items

USB-Hub

Downloads

Flyer ATOS

Category:
Flyer
Release:
15.17
Publish Date:
27.04.2020
Attachment Size:
2 MB
Description:

Short overview about the Automatic Transformer Observation System ATOS.

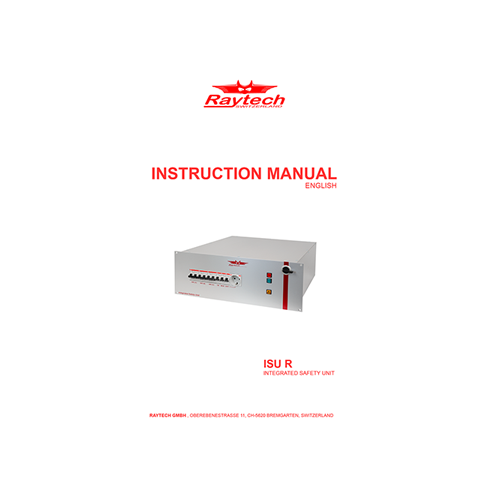

Instruction Manual ISU R

Category:
Instruction Manual
Release:
1.03
Publish Date:
26.04.2020
Attachment Size:
2 MB
Description:

Instruction Manual for the Integrated Safety Unit

Leaflet ISU R

Category:
Leaflet
Release:
1.00
Publish Date:
27.04.2020
Attachment Size:
167 KB
Description:

This is a short overview about the Integrated Safety Unit
