MUX-R

Multiplexer for Transformer Testing

Product Number: 70052
  • Minimizes cabling time
  • All measurement with one cable WR and TR
  • Used for customized systems
Raytech offers a 2 year standard warranty and 100% Swiss quality

Description

Raytech Multiplexer MUX R is designed to drastically reduce cabling time and increase test performance. It is made to be used with Raytech Winding Resistance and Turns Ratio Meters. Any MUX R configuration can be easily controlled by a Winding Resistance Meter touch panel or by remote.

Features

  • Minimizes cabling time
  • Does all measurements with one cabling per transformer, including Winding Resistance and Turns Ratio
  • Using a 4-wire measurement ensures the same high precision as measuring without a Multiplexer.
  • Use up to three Multiplexers and measure transformers with three winding systems with one cabling sequence
  • Get your own configuration containing from one to three Multiplexers, from one to three Winding Resistance Meters and one Turns Ratio Meter
  • Control your Tap Changer with a powerful tap changer interface
  • Operate all instruments on a touch screen or by remote control
  • Get a customized complete solution containing WR, TR and Multiplexers. Ask Raytech for a ATOS (Automatic Transformer Observing System)
  • 2 Year standard warranty

Specifications

Area of use:

Indoor including heavy industrial electromagnetic environments

Enclosure:

Aluminium rack mounted case

Supply:

IEC 60320, C13/C14 mains connector, CAT II

Rack unit:

4U

Absolute input voltages:

90-264 VAC @ 47-63Hz

Operating temperature:

-10°C (14°F) to +40° C (104°F)

Storage temperature:

-20°C ( -4°F) to +70°C (158°F)

Size:

L: 490 mm (19.3”) W: 436 mm (17.2”) H: 177 mm (7”)

Weight (instrument):

10.3 kg (22.7 lbs.)

See Instruction Manual for more Parameters

Specifications are subject to change without notice



In the box

Power Cord
MPZ-111
Accessories MUX
MPZ-115
Cable Set Type Multiplexer 1CH-MC 3 Phase Kelvin , 1 Channel 3 Phase, Length 15m

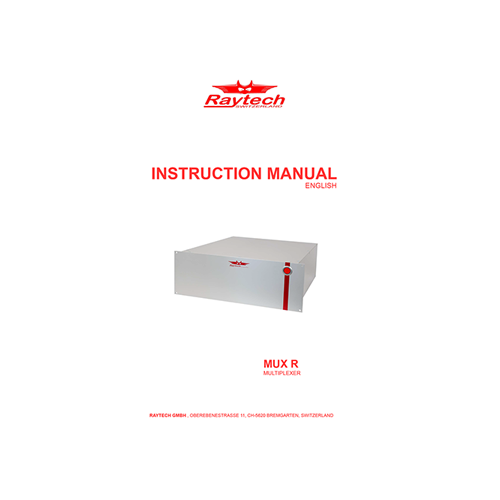

Instruction Manual - MUX-R
