Winding Resistance Meter 15Amps, 2 Channels Rack

WR14R

Product Number: 70050
  • Battery and mains operated
  • Demagnetisation and discharge
  • Color touch screen
Raytech offers a 2 year standard warranty and 100% Swiss quality
Product variant
Winding Resistance Meter 15Amps, 2 Channels Rack
Rack

Description

Raytech Digital Winding Resistance meter WR14 R is the rack mount version of the WR14. They are designed for high degree of accuracy for the measurement of very low resistance of any inductive loads.

Unique Measuring Technique: This newly designed technique of measurement incorporates a high precision measurement circuit, a unique power source and the fastest discharge unit on the market.

The WR-14 R applies a preset current level, selected by the user from 0.025A to 15A.

The results are reported on the easy-to-read color LCD display and can be stored or printed.

Advanced Protection: Upon powering on the system initializes itself with a self-calibrating, circuit checking sequence. If any problem is detected during this initialization period, or during operation, immediately the operator will be notified.

Features

  • High power DC supply (15A / 30V)
  • Charge inductive loads up to 1500 Henry
  • 2 independent measuring channels
  • Highest Accuracy and Precision of any high current test system
  • Automatic measurements of Low Resistance from 0.00µΩ  ...100kΩ
  • Demagnetizing Circuit (Advanced design)
  • Microprocessor based system with internal storage for over 10000 test results
  • Data exchange via USB-Key or USB / RS Connection
  • Storage and Printing of test results
  • Complete automatic calibration system and system diagnostics
  • Temperature channels with automatic resistance correction
  • Standard USB 2.0 & RS232 (serial) Interface
  • Pure filtered DC Power source for the highest accuracy readings
  • Color LCD with backlighting and touch screen
  • Panel mounted Emergency Stop Switch
  • Mounted in 19" rack housing
  • Fully automatic cooling curve analysis (option AHRT 01)
  • Fast discharge unit
  • Discharge Indicator - visible and audible indicator for discharge status
  • 2 Year standard warranty

Specifications

Model:

WR14 R

Size:

L: 395 mm (15.6”) W: 436 mm (17.2”) H: 177 mm (7.0”), Rack

Unit:

4U

Weight:

7.9 kg (17.4 lbs.)

Input power:

88 to 264 VAC, 47...63 Hz

Output Power:

max 90W

Output voltage:

0 to 30 V DC

Test current user selectable:

25 mA ...15 A

Display:

Color LCD with back lighting and touch screen

Front panel:

sealed, anodized

Interfaces:

4 USB 2.0 full speed (3 host, 1 device) and 9 Pin RS232 serial

Memory storage:

Internally stores more than 10 000 test results

Operating temperature:

-10ºC to +60° C

Storage temperature:

-20°C to +70°C



See Instruction Manual for more Parameters.



Specifications are subject to change without notice.



Accuracy

Measurement parameters



Current range

Measuring range

Accuracy

Resolution

10-15 A

0.00 µΩ ... 1 Ω

± 0.1% Rdg ± 0.1 µΩ

5 Digits or 0.05 µΩ

5-10 A

0.0 µΩ ... 3 Ω

± 0.1% Rdg ± 0.2 µΩ

5 Digits or 0.1 µΩ

1-5 A

0.0000mΩ ... 15 Ω

± 0.1% Rdg ± 0.5 µΩ

5 Digits or 0.5 µΩ

0.5-1 A

0.000 mΩ ... 30 Ω

± 0.1% Rdg ± 2 µΩ

5 Digits or 1 µΩ

0.1-0.5 A

0.000 mΩ ... 300 Ω

± 0.1% Rdg ± 5 µΩ

5 Digits or 2 µΩ

25-100 mA

0.00 mΩ ... 1200 Ω

± 0.1% Rdg ± 20 µΩ

5 Digits or 10 µΩ

<25 mA

1.2 kΩ ... 10 kΩ

± 0.1% Rdg ± 100 mΩ

5 Digits or 200 mΩ

<25 mA

10 kΩ ... 100 kΩ

± 0.5% Rdg ± 10 Ω

4 Digits or 20 Ω



Resistance range:

0.00 µΩ to 100 kΩ



Inductance range:

0 Henry to 1500 Henry



In the box

Standard Cable Bag

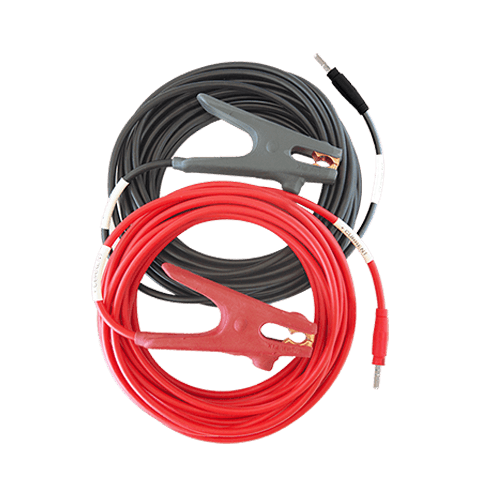

Current Cables for WR-14
2x 5m

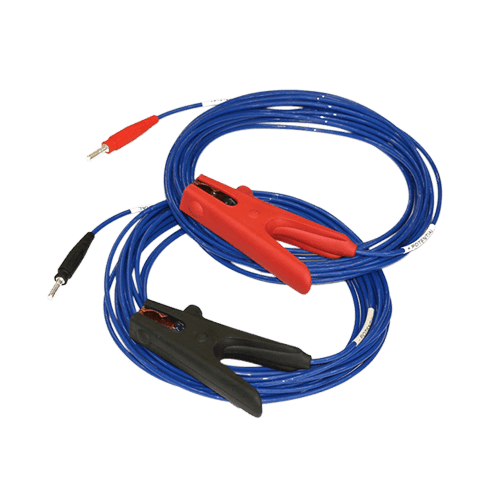

Potential Cables CH 1 5m
2x 5m

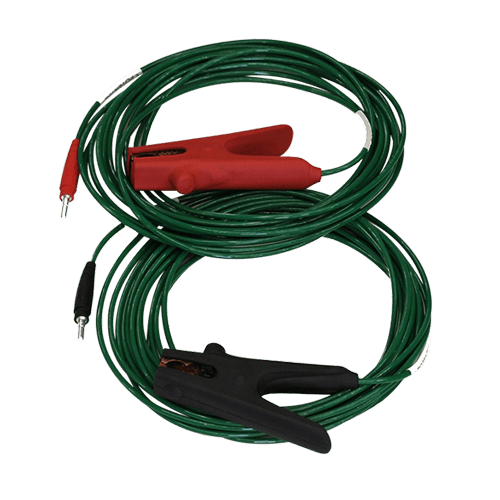

Potential Cables CH 2 5m
2x 5m

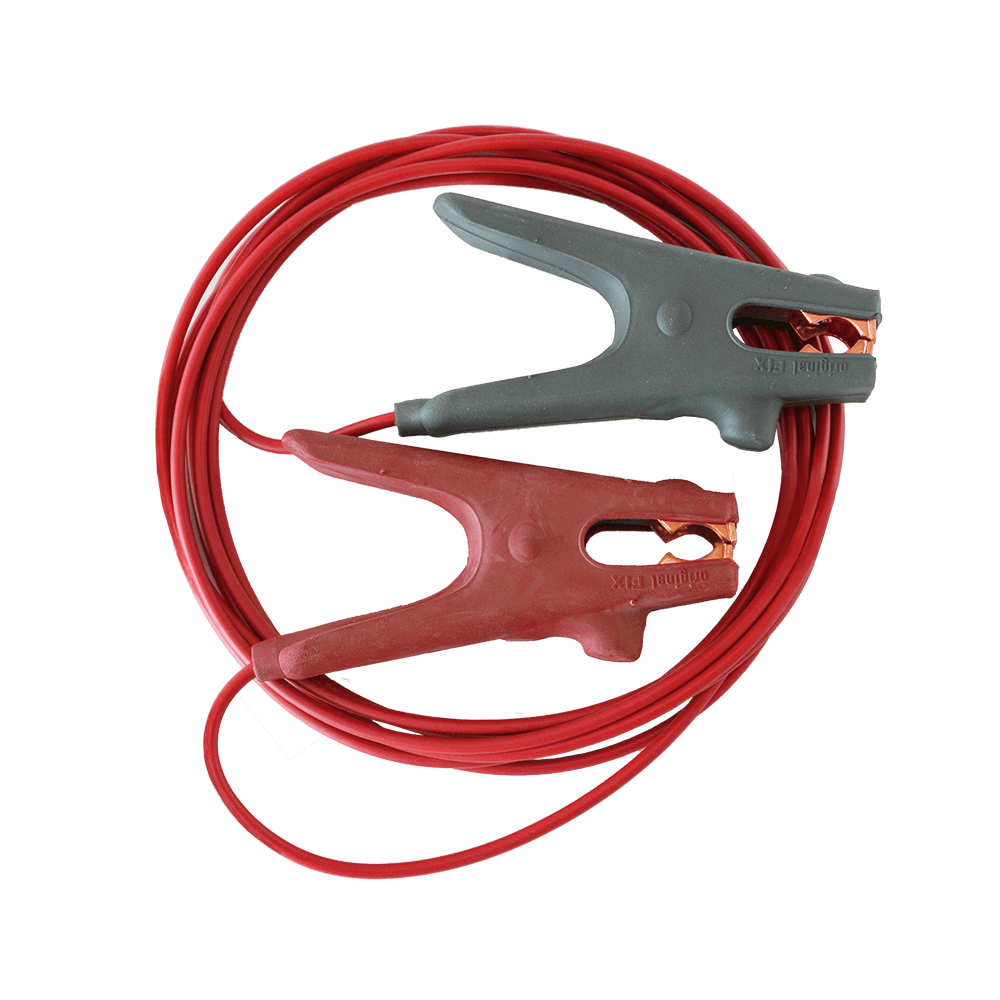

Jumper Cables for WR-14 and WR-14-R
1x 5m
Power Cord

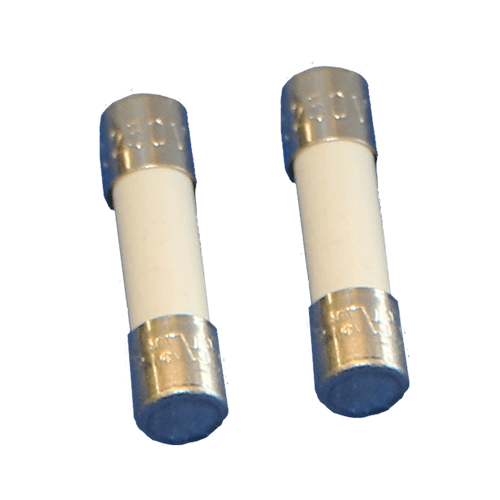

2 Fuses
USB Memory Stick

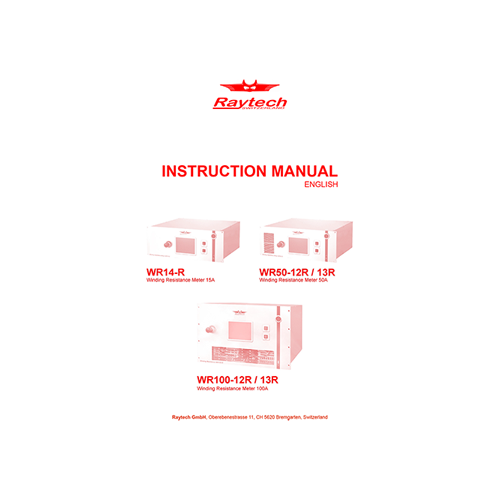

Instruction Manual - WR-14-R/WR-50-R/WR-100-R
Software T-Base Pro
Powerful software for remote control, data exchange and analysis

Optional items

TP-01
External temperature probe

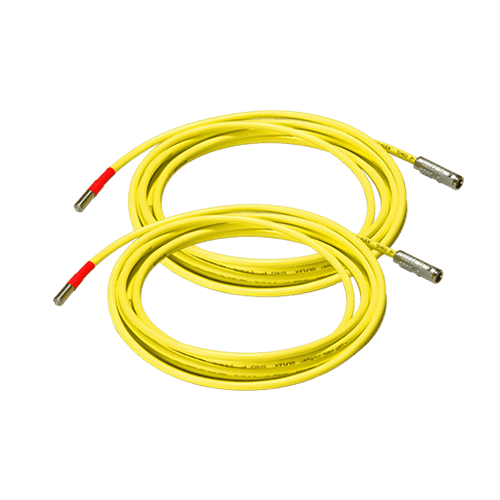

TP-02
2 External temperature probes

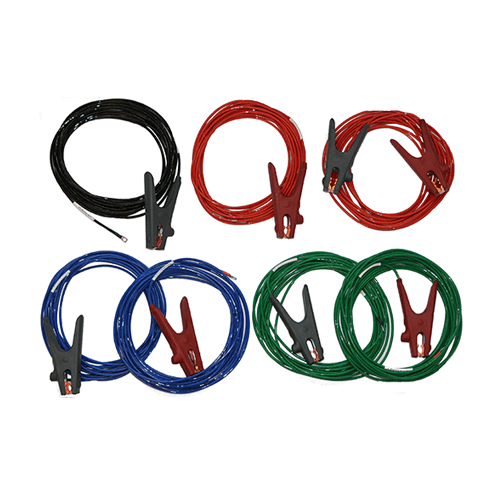

WRO-402
10m cable set 2x10m current, 4x10m potential cables, 1x10m jumper cable

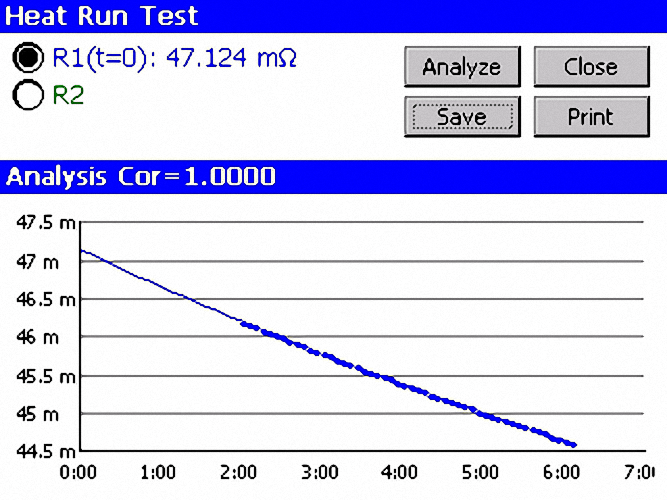

AHRT-01
Automatic Heat Run Test Software
Software T-Base Pro Extension Remote
Remote control
Software T-Base Pro Extension Sequence
Full automatic test sequences

Related Products

Downloads

Firmware WR (Old version)

Category:
Firmware
Release:
2.7.12.0
Publish Date:
08.12.2020
Attachment Size:
1 MB
Description:

This Firmware is valid for the following products:

WR14, WR14 R, WR50-1x, WR50-1xR, WR100-12R, WR100-13R

This firmware is suitable for the older instrument (with the CPU model: NetDCU), for serial numbers less than 350-000. These insruments can work with newer firmware but it is slow and we recommend to use this firmware version instead.

Installation:
recommended
Additional Document: raytech-firmwareupdate-wr.pdf

Firmware WR

Category:
Firmware
Release:
3.4.0.0
Publish Date:
08.12.2020
Attachment Size:
2 MB
Description:

This Firmware is valid for the following products:

WR14, WR14 R, WR50-1x, WR50-1xR, WR100-12R, WR100-13R

The Firmware has integrated Transformer profiles, which can be very helpful. If you don't want to use them, go into the Setup on the instrument and deselect "Use Profiles" or download the old firmware version 2.7.12.0.

Installation:
recommended
Additional Document: raytech-firmwareupdate-wr.pdf

Flyer WR-14

Category:
Flyer
Release:
15.13
Publish Date:
26.04.2020
Attachment Size:
1 MB
Description:

Short overview about the WR-14 and WR-14 R

Command Set WR-xx

Category:
Command Set
Release:
3.02
Publish Date:
26.04.2020
Attachment Size:
391 KB
Description:

This is a summary of the commands to remote control the WR14, WR14R, WR50-1x, WR50-1xR, WR100-12R, WR100-13R over the RS232 or USB interface.

Leaflet Temperature Probe TP 01

Category:
Leaflet
Release:
1.00
Publish Date:
27.04.2020
Attachment Size:
68 KB
Description:

This is a short description about the Temperature Probe TP 01 with technical specification.

Quick Start Guide SDK WRxx

Category:
Command Set
Release:
1.00
Publish Date:
27.04.2020
Attachment Size:
294 KB
Description:

This is Quick Start Guide about the Software Development Kit for all Winding Resistance Meter from Raytech.

Instruction Manual WR-XX- Rack

Category:
Instruction Manual
Release:
3.04
Publish Date:
26.04.2020
Attachment Size:
7 MB
Description:

Instruction Manual for the Winding Resistance Meters in the field case for the following types:

WR14-R, WR50-1x-R, WR100-1x-R
