Dynamic resistance graph is now available for mini-ATOS DRM test
The firmware version 1.09.06 for mini-ATOS is now ready for download. You can always download the latest firmware of any Raytech instrument from the Raytech website downloads page.

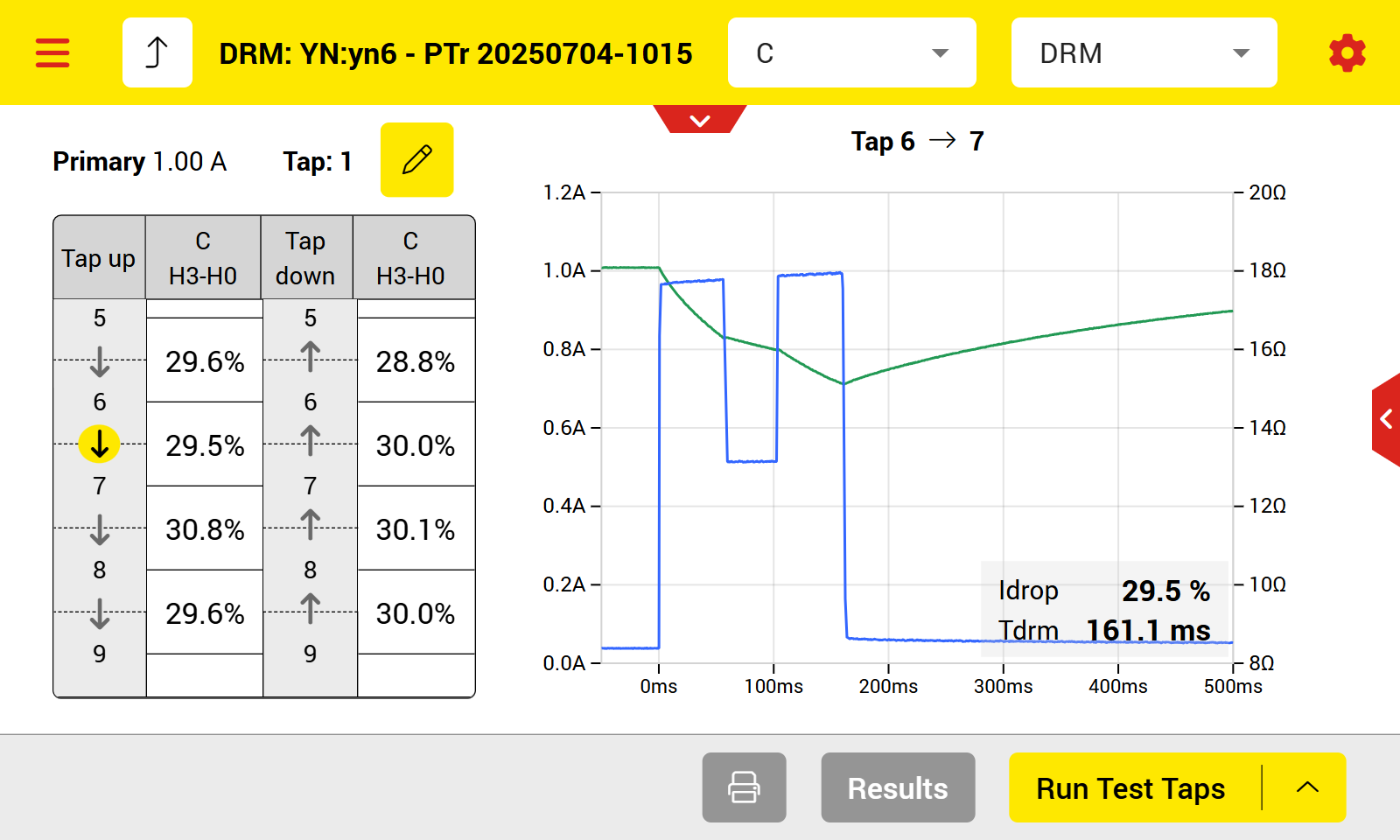

In this new firmware, DRM test will show the dynamic resistance graph in addition to dynamic current graph. This graph is very helpful to check the transition timings and diagnose the value of transition resistances.
All users that have already the DRM license can just update to the latest version to use this option. No additional license is required.
In response to the request of users, we have added a new feature for Magnetic Balance. Users can now choose the desired test frequency (10Hz or 50Hz) to perform the Magnetic Balance.

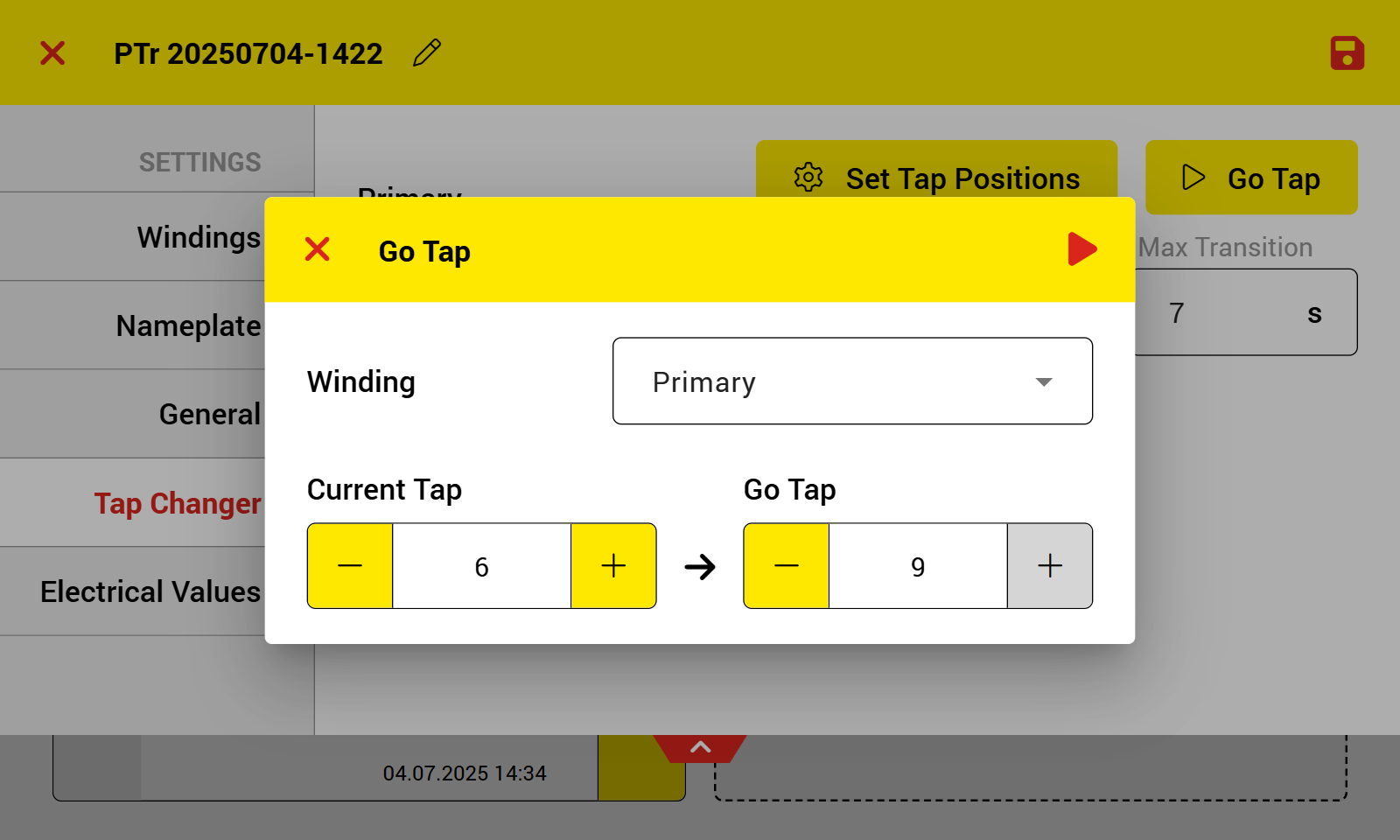

It is also now possible to change the tap position from the test object profile. This feature is helpful to test the tap control cable connection and also to go to the desired tap position automatically while not testing.
Raytech always welcome suggestions for new feathers and enhancements. If you have any suggestion or upgrade request, please do not hesitate to contact us.
